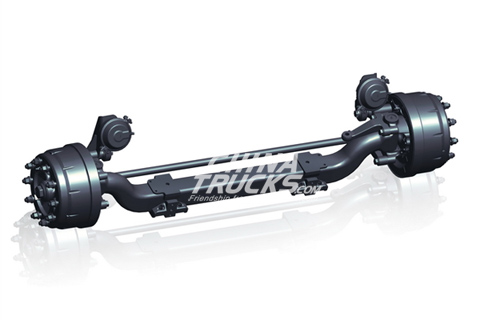

Fuwa XNF-05 Non-Drive Steering Axle

Fuwa XNF-05 Non-Drive Steering Axle
Fuwa XNF-05 Non-Drive Steering Axle
● Load Capacity

Gross Axle Weight(On-Highway Application):5500Kg

● Track(Other options are possible upon request)

2059mm

● Mounting Center

750~880mm

● King Pin Intersection(Other options are possible upon request)

1780mm

● Beam

Box Section:124x116mm

Wall Thickness:10mm

Drop:88mm

● Maximum Steering Angle(Inner wheel)

45°

● King Pin Inclination

● Brakes(Other options are possible upon request)

410x180mm、410x150mm、420x180mm

● Wheel Mounting(Other options are possible upon request)

Φ335mm-10 studs M22x1.5
