| Basic Information | |||

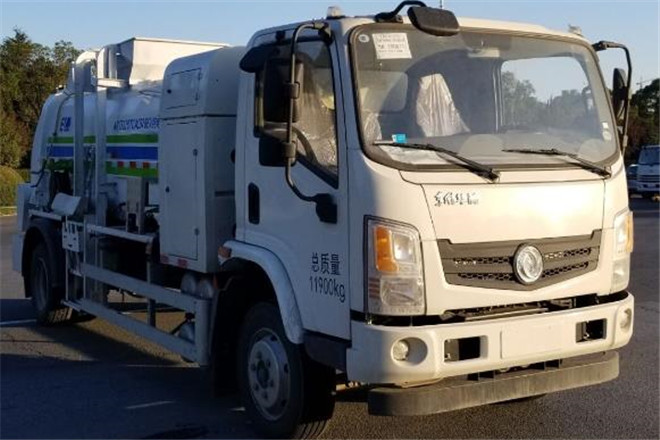

| Usage | Refuse Collector | ||
| Fuel Type | Electric vehicle | ||
| Length | 7520,7020mm | ||
| Width | 2250mm | ||
| Height | 2800mm | ||
| Curb Weight | 7650kg | ||
| Gross Weight | 11900kg | ||
| Seats | 3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | EQ1120TTEVJ | ||
| Front/Rear Overhang | 1150/1670mm | ||
| Number of Leaf Springs | 8/8+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 4200,4700mm | ||
| Axle Load | 4100/7800kg | ||
| Front Wheel Track | 1730mm | ||
| Rear Wheel Track | 1590mm | ||
| Approaching/Departuring Angle | 28/° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 245/70R19.5 16PR,8.25R20 16PR,8.25R20 14PR | ||
| Electrical Machinery | |||
| Model | Brand | Max Power | |
| TZ380XSTY842 | Wuhan Polytechnic New Source Power Co., Ltd. | 160kW | |
