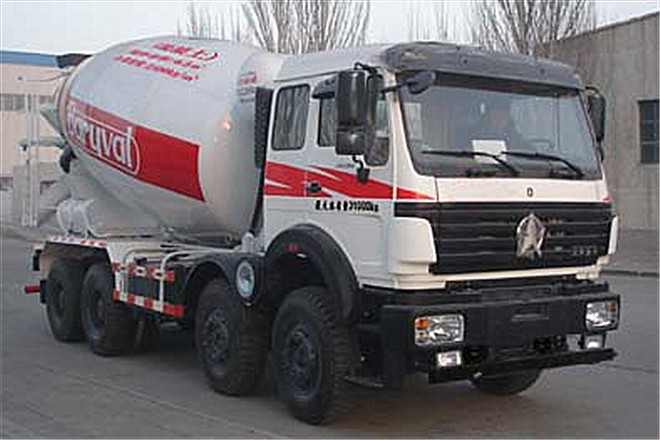

| Basic Information | |||
| Usage | Engineering Vehicle | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2005 national Ⅳ emission standards | ||
| Length | 11050 mm | ||
| Width | 2500mm | ||
| Height | 3990 mm | ||
| Curb Weight | 17300kg | ||
| Gross Weight | 31000kg | ||
| Seats | 2,3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | ND13102D34J | ||
| Front/Rear Overhang | 1410/2890,1410/2840 mm | ||
| Number of Leaf Springs | 12/12/13 | ||
| Number of Axles | 4 | ||
| Wheelbase | 1950+3400+1450,1950+3450+1350 mm | ||
| Axle Load | 6500/6500/18000(two axles)kg | ||
| Front Wheel Track | 2045/2045mm | ||
| Rear Wheel Track | 1872/1872 mm | ||
| Approaching/Departuring Angle | 26/15° | ||
| Tire | |||
| Number of Tires | 12 | ||
| Tire | 12.00-20 16PR,12.00R20 16PR,11.00-20 18PR,11.00R20 18PR,315/80R22.5 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP10.336E40 | Weichai Holding Group Co., Ltd. | 247，276kW | 9726，11596ml |
| WP12.375E40 | Weichai Holding Group Co., Ltd. | ||
