| Basic Information | |||

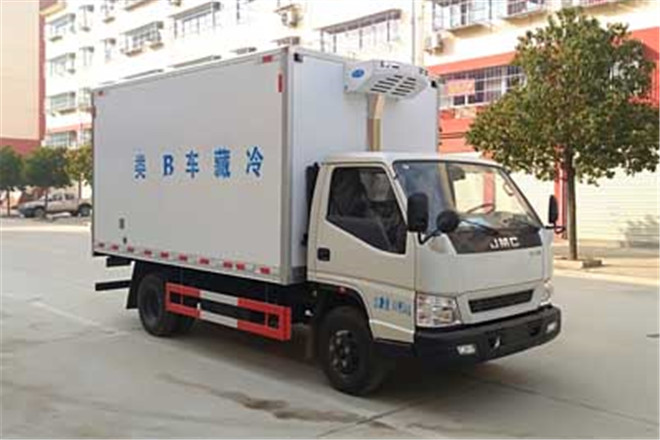

| Usage | Refrigerated Van | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 5995mm | ||
| Width | 2140,2230mm | ||
| Height | 2980,3150mm | ||
| Curb Weight | 3200kg | ||
| Gross Weight | 4495kg | ||
| Seats | 3 | ||
| Max Speed | 100km/h | ||
| Chassis | |||
| Chassis Model | JX1042TG25 | ||
| Front/Rear Overhang | 1140/1495mm | ||
| Number of Leaf Springs | 7/5+6 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3360mm | ||
| Axle Load | 1925/2570kg | ||
| Front Wheel Track | 1680mm | ||
| Rear Wheel Track | 1570mm | ||
| Approaching/Departuring Angle | 18.3/13° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.00R16LT 8PR,7.00R16LT 10PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| JX493ZLQ5 | Jiangling Motors Group Co., Ltd. | 85kW | 2771ml |
| JX493ZLQ5A | Jiangling Motors Group Co., Ltd. | 85kW | 2771ml |
