| Basic Information | |||

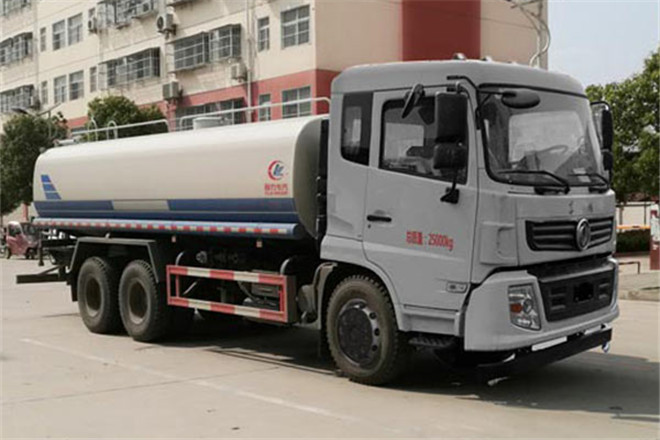

| Usage | Tree Sprinkling Tanker | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 10350,10310mm | ||
| Width | 2500mm | ||
| Height | 3200mm | ||
| Curb Weight | 10405kg | ||
| Gross Weight | 25000kg | ||
| Seats | 2,3 | ||
| Max Speed | 89km/h | ||
| Chassis | |||
| Chassis Model | EQ1258GSZ6DJ | ||
| Front/Rear Overhang | 1515/3135,1475/3135mm | ||
| Number of Leaf Springs | 8/10,9/10 | ||
| Number of Axles | 3 | ||
| Wheelbase | 4350+1350,4750+1350,5900+1350mm | ||
| Axle Load | 7000/18000(two axles)kg | ||
| Front Wheel Track | 1860,1940,1960,1985mm | ||
| Rear Wheel Track | 1750/1750,1860/1860,1880/1880mm | ||
| Approaching/Departuring Angle | 26/16° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 11.00R20 18PR,295/80R22.5 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| B6.2NS6B230 | Dongfeng Cummins Engine Co., Ltd. | 169kW | 6200ml |
| B6.2NS6B260 | Dongfeng Cummins Engine Co., Ltd. | 191kW | 6200ml |
| YCS06245-60 | Guangxi Yuchai Machinery Co., Ltd. | 180kW | 6234ml |
| YCS06270-60 | Guangxi Yuchai Machinery Co., Ltd. | 199kW | 6234ml |
