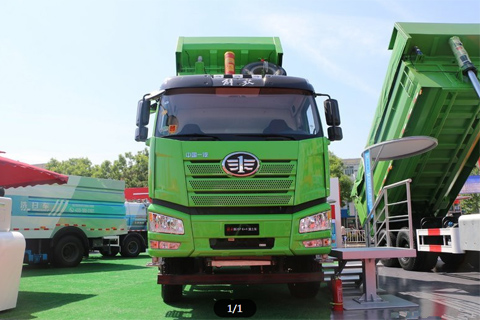

FAW Jiefang J6P 550HP 8X4 Dumper(CA3310P66K24L6T4AE5)

Curb Weight: 15180,15500(Kg)
Payload Weight: 15625,15690,15305,15370(Kg)
Gross Weight: 31000(Kg)
Driving Type: 8×4
Max Speed: 79(km/h)
Emission Standard: National Ⅴ
Fuel Cosumption: 43.79,42.75,44,46.2,46.8
Tire: 12R22.5,11.00R20,11.00-20,12.00R2018PR,12.00-2018PR

Product Announcement: CA3310P66K24L6T4AE5
Overall Dimension: 11200,11070,10945,11045,11370,11095,11195×2500,2550×3600,3680(mm)
Cargo Dimension: 8200,8000×2300,2350×1020,1500,1250(mm)
Approach/Departure Angle: 24/22(°)
Front/Rear Suspension:
1470/1980,1470/2150,1470/2025,1470/2125,1500/1950,1500/2120,1500/1995,1500/2095,1500/1845,1500/1945(mm)
Axle Load: 6500/6500/18000(For two axles)
Wheel Base: 2100+4300+1350,2100+4000+1350,1950+4450+1350,1950+4150+1350(mm)
Number of Axles: 4
Leaf Spring: 10/10/12,9/9/10,11/13/13
Several Tire: 12
Track Width, Front: 2020/2020,2048/2048mm
Track Width, Rear: 1847/1847,1878/1878mm

Engine	Displacement(ml)	Power(kw)
CA6DM2-42E51	11050	312/425
CA6DM2-46E51	11050	342/466
CA6DM2-39E51	11050	290/395
CA6DM2-42E52	11050	312/425
CA6DM2-46E52	11050	342/466
CA6DM3-50E5	12520	370/504
CA6DM3-55E52	12520	407/554
WP12.430E50	11596	316/430
WP12.460E50	11596	338/460
CA6DM3-55E51	12520	407/554
