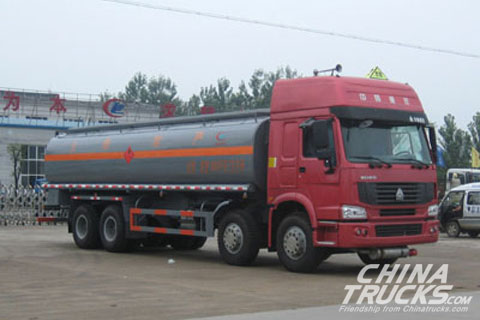

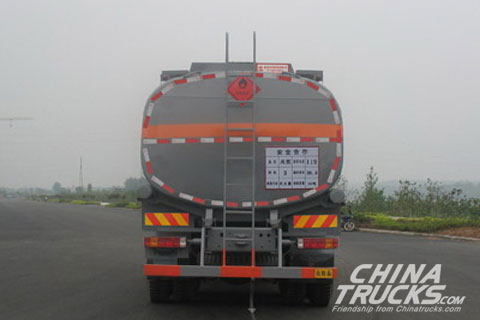

CLW5311GHY3 Chemical truck+Dongfeng Cummins Power

CLW5311GHY3 Chemical truck+Dongfeng Cummins Power
CLW5311GHY3 Chemical truck+Dongfeng Cummins Power CLW5311GHY3 Chemical truck+Dongfeng Cummins Power
Views:0
Basic Information
Usage Aluminum Alloy Oil Tanker

Model: CLW5311GHY3

Overall Dimensions: 11980×2500×3400,3700

Curb Weight: 15205kg

Payload Weight: 15665,15600kg

Gross Weight: 31000kg

Max Speed: 85km/h

Fuel Type: diesel

Engine Displacement: 6.7L; 8.9L; 8.3L;8.424L; 11.12L

Engine Max Power: 198kw;180kw; 213kw;199kw;191kw;

Emission Standard: GB3847-2005,GB17691-2005 Euro 3

Tire: 10.00-20,10.00R20,11.00-20,11.00R20,295/80R22.5

Chassis Model: DFL1311A3

Tank Capacity : 24.8m3

Approach/Departure angle: 25/11°

F/R track base: F/R track base

Chassis Name (Type): Category 2

Chassis Overall dimensions: 11475×2500×3030,3600,3690mm

Axle Nos: 4

Wheelbase: 1950+4250+1300,1950+4250+1350,1950+4500+1300,1950+4500+1350,1950+4500+1430,1850+4600+1430

Axle Load: 6500/6500/18000kg

Tyre Nos: 12

Leaf Spring Nos: 8/8/10,3/3/4

Front Tread: 1940/1940,1986/1986mm

Rear Tread: 1860/1860mm

Turned Form: wheel
Engine Model: ISDe270 30;ISDe245 30;ISLe290 30;L270 30;L290 30;C245 33;C260 33;YC6L270-33;dCi290-30
Engine Manufacturer: Dongfeng Cummins Engine Co.,Ltd.

Dongfeng Cummins Engine Co.,Ltd.; Guangxi Yuchai machinery Co.,Ltd; Dongfeng automobile company


Special Feature Description:

Multi-channel anti-tank located within the wave separator, high pressure gas leak testing and detection, so that the tank has high strength, stable center of gravity, the vehicle carrying security features

Independently sub-warehouses, equipment can be divided into different chemicals, food, design enables the pump suction, pumping out over the table, the pump into the pump, but the table, gravity over the table, but tables and other functions.

The Chemical liquid tank truck of Hubei Chengli Special automobile Co.,Ltd produced , shipment all kinds of chemical liquid : such as hydrochloric acid , sulfuric acid , nitric acid , alcohol , various oils and so on . The tank material can be carbon steel , stainless steel , carbon steel tank lined with rotainal molding , plastic cans . Optional chemical pumps ,stainless steel pumps , stainless pipe
