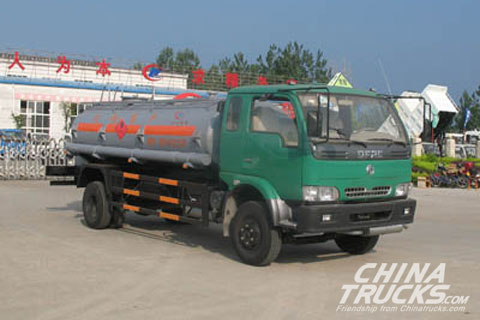

Model: CLW5090GHY3
Overall Dimensions: 7750*2350*2800mm
Curb Weight: 4915kg
Payload Weight: 3500kg
Gross Weight: 8610kg
Max Speed: 90km/h
Wheelbase: 4400mm
Fuel Type: Diesel
Tank Volume: 5001 - 10000L
Chasis Model: EQ1090GJ
Transmission Type: Manual
Horsepower: < 150hp
Engine Capacity: 3922
Brand Name: CLW
Place of Origin: Hubei, China (Mainland)
F/R Overhang: 1270/2080mm
Track (Front/Rear): 1835/1640mm
Approach/departure angle: 21/13
Engine Type: ISBE150 30
Exhaust/hp:3922/110ml/kw
Number of Axles: 2
Operation control system: Electrically hydraulic control Allowable passengers in cab
Equipment:
Multi-channel anti-tank located within the wave separator, high pressure gas leak testing and detection, so that the tank has high strength, stable center of gravity, the vehicle carrying security features
Independently sub-warehouses, equipment can be divided into different chemicals, food, design enables the pump suction, pumping out over the table, the pump into the pump, but the table, gravity over the table, but tables and other functions
