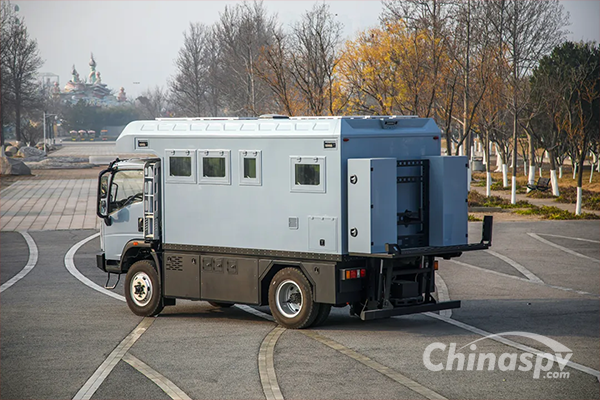

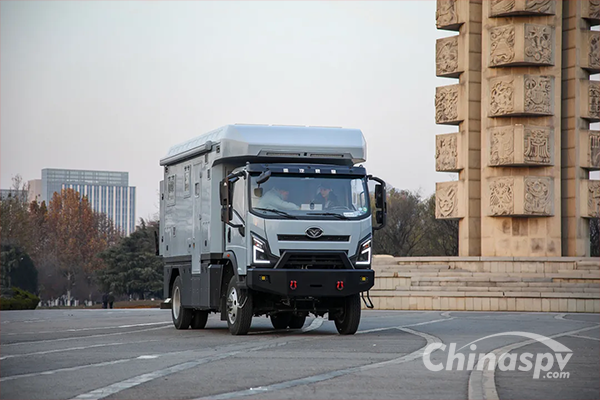

This RV is produced by Sinotruk's original factory. It is equipped with its own Haoman chassis and an original four-wheel drive system. Coupled with its own military manufacturing experience, the durability of the chassis is guaranteed. This RV is designed based on the manufacturing form of heavy-duty RVS for light trucks. The curb weight of the entire vehicle is 7.5 tons, and the maximum allowable total mass is given at the level of 9 tons. Therefore, in terms of carrying capacity, it has more advantages than most light trucks. The external dimensions are 5995×2480×3460(mm).
The rear axle air spring suspension of the entire vehicle can be manually adjusted in height. The remote control is inside the driver's cabin. When shooting the lifting and lowering states, the maximum distance between the tire and the wheel arch before and after lifting is as much as 15 centimeters. This means that it has certain advantages when passing over some cross-axle roads, with a larger travel and better off-road performance.
The box part of this RV adopts fiberglass reinforced plastic exterior walls. The box and the frame are designed in a three-point floating style, and there is also a soft connection between the driver's cabin and the box. The simplest way to put it is that the front of the car and the frame keep jolting and vibrating along with the road, but the vibration transmitted to the box part is much smaller, which can minimize the stress transmitted from the chassis to the box during driving and reduce the damage to the lowest level.
