position : Home>>products>>Dongfeng 12t D9 Sprinkler with National VI Emission Standards

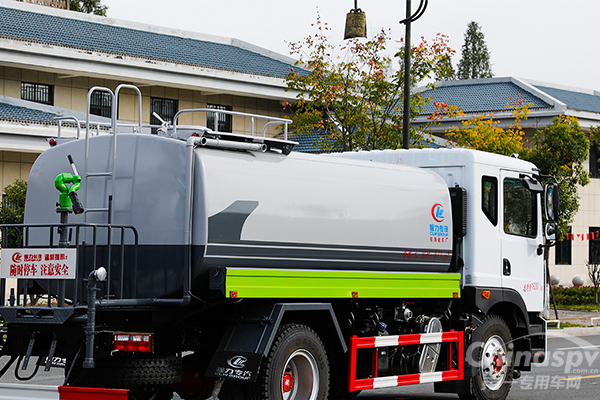

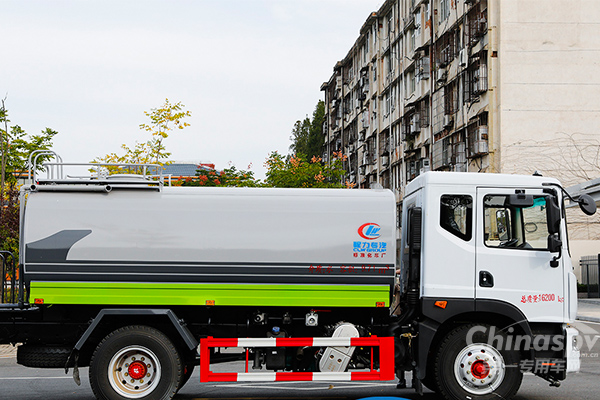

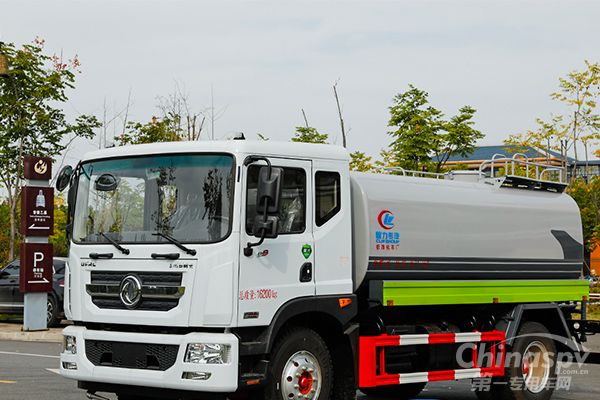

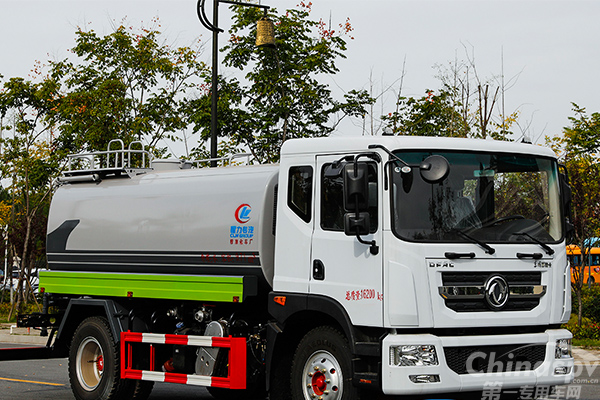

Dongfeng 12t D9 Sprinkler with National VI Emission Standards

Dongfeng 12t D9 Sprinkler with National VI Emission Standards
Dongfeng 12t D9 Sprinkler with National VI Emission Standards Dongfeng 12t D9 Sprinkler with National VI Emission Standards Dongfeng 12t D9 Sprinkler with National VI Emission Standards Dongfeng 12t D9 Sprinkler with National VI Emission Standards
Views:0
Basic Information
Usage Street Sprinkler
Model CLW5160GPSD6
Gross Weight 16200(kg)
Volume 9.45(cubic meter)
Rated Load 9005,9070(Kg)
Curb Weight 7000(kg)
Dimensions 7560×2500×3250(mm)
Approaching/Departuring Angle 18/12(°)
Front/Rear Overhang 1260/2350(mm)
Number of Axles 2
Wheelbase 3950,4500,4700,5000,5300,5600(mm)
Axle Load 5600/10600(kg)
Max Speed 105(km/h)
Chassis type EQ1165LJ9CDE
Number of Tires 6
Number of Leaf Spring 8/10+7
Tire 9.00R20 16PR,10.00R20 18PR,295/80R22.5 18PR,275/80R22.5 18PR
Front Wheel Track 1862,1933,1949(mm)
Rear Wheel Track 1806,1865(mm)
Chassis Discharge Standard GB3847-2005,GB17691-2018 National Ⅵ Emission Standards
Fuel Type Diesel
Engine Model B6.2NS6B210, D4.5NS6B220, D4.0NS6B195, YCS04200-68, CY4SK761, B6.2NS6B230, YCY30165-60
Engine Displacement 2970 – 6200(ml)
Engine Max Power 121 -169(kw)
