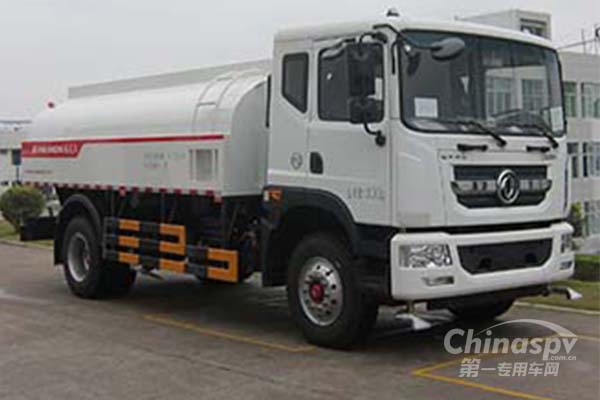

Dongfeng D9 210hp 14 Cubic Meters Sprinkler with National VI Emission Standards

Dongfeng D9 210hp 14 Cubic Meters Sprinkler with National VI Emission Standards
Dongfeng D9 210hp 14 Cubic Meters Sprinkler with National VI Emission Standards Dongfeng D9 210hp 14 Cubic Meters Sprinkler with National VI Emission Standards Dongfeng D9 210hp 14 Cubic Meters Sprinkler with National VI Emission Standards Dongfeng D9 210hp 14 Cubic Meters Sprinkler with National VI Emission Standards
Basic Information
Usage Street Sprinkler
Model FLM5180GSSDG5
Gross Weight 18000(kg)
Volume 10.71(cubic meter)
Rated Load 10205,10655(Kg)
Curb Weight 7600,7150(kg)
Dimensions 8130,7780×2500×2865 (mm)
Approaching/Departuring Angle 18/13,14/18(°)
Front/Rear Overhang 1230/2400,1230/2050(mm)
Number of Axles 2
Wheelbase 4500,5200,3950(mm)
Axle Load 6500/11500(kg)
Max Speed 110(km/h)
Chassis type EQ1181LJ9BDE
Number of Tires 6
Number of Leaf Spring 8/10+7
Tire 10.00R20,295/80R22.5,275/80R22.5
Front Wheel Track 1923,1949(mm)
Rear Wheel Track 1865(mm)
Chassis Discharge Standard GB17691-2005 National VI Emission Standards, GB3847-2005
Fuel Type Diesel
Engine Model YC4EG185-50, ISB180 50, ISB210 50, YC6JA180-50, YC4S160-50
YC4S170-50
Engine Displacement 3767 - 6870(ml)
Engine Max Power 118 - 155(kw)
