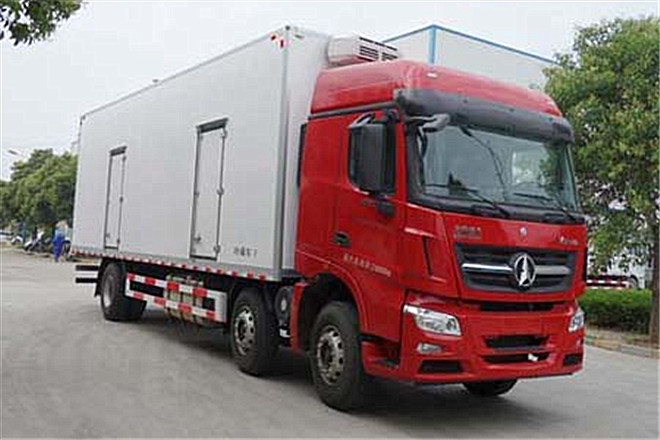

Beiben ND5310XLCZ01 Refrigerated Van

Beiben ND5310XLCZ01 Refrigerated Van
Beiben ND5310XLCZ01 Refrigerated Van
Views:0
Basic Information
Usage Refrigerated Van
Fuel Type Diesel
Emission Standard GB17691-2005 national Ⅴ emission standards, GB3847-2005
Length 12000mm
Width 2600mm
Height 3960mm
Curb Weight 12600kg
Gross Weight 31000kg
Seats 2,3
Max Speed 90km/h
Chassis
Chassis Model ND1310DD5J7Z03
Front/Rear Overhang 1500/2550mm
Number of Leaf Springs 2/2/3
Number of Axles 4
Wheelbase 1950+4650+1350mm
Axle Load 6500/6500/18000(two axles)kg
Front Wheel Track 2045/2045,2064/2064mm
Rear Wheel Track 1850/1850,1868/1868mm
Approaching/Departuring Angle 14.5/11°
Tire
Number of Tires 12
Tire 12R22.5
Engine
Model Brand Power Displacement
WP10H350E50 Weichai Holding Group Co., Ltd. 257kW 9500ml
WP10H375E50 Weichai Holding Group Co., Ltd. 276kW 9500ml
WP12.430E50 Weichai Holding Group Co., Ltd. 316kW 11596ml
