| Basic Information | |||

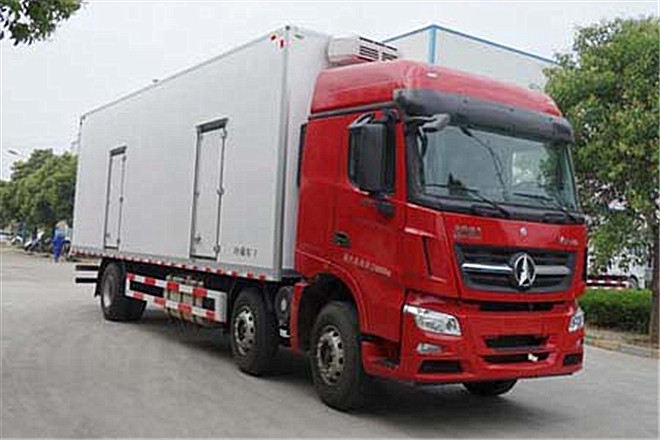

| Usage | Refrigerated Van | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 11390mm | ||
| Width | 2600mm | ||
| Height | 3960mm | ||
| Curb Weight | 11080kg | ||
| Gross Weight | 25000kg | ||
| Seats | 2,3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | ND1250LD5J7Z01 | ||
| Front/Rear Overhang | 1500/2890mm | ||
| Number of Leaf Springs | 2/2/3+3 | ||
| Number of Axles | 3 | ||
| Wheelbase | 1950+5650,1950+5050mm | ||
| Axle Load | 7000/7000/11000kg | ||
| Front Wheel Track | 2045/2045,2064/2064mm | ||
| Rear Wheel Track | 1850,1868mm | ||
| Approaching/Departuring Angle | 14.5/11° | ||
| Tire | |||
| Number of Tires | 8 | ||
| Tire | 12R22.5 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP9H310E50 | Weichai Holding Group Co., Ltd. | 228kW | 8800ml |
| WP10H350E50 | Weichai Holding Group Co., Ltd. | 257kW | 9500ml |
