Basic Information | |||

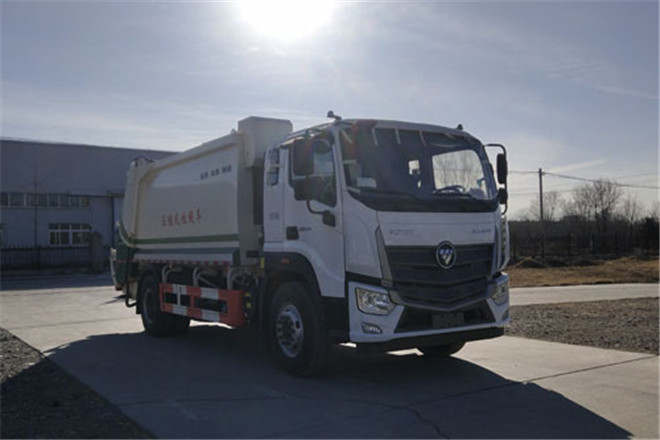

Usage | Refuse Collector | ||
Fuel Type | Diesel | ||
Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
Length | 8445,8880mm | ||
Width | 2550,2470mm | ||
Height | 3055,3235mm | ||
Curb Weight | 9870kg | ||
Gross Weight | 18000kg | ||
Seats | 2 | ||
Max Speed | 89km/h | ||
Chassis | |||
Chassis Model | BJ1186VKPHK-1K | ||
Front/Rear Overhang | 1270/2405mm | ||
Number of Leaf Springs | 10/8+8,10/10+8,3/4+3,10/- | ||
Number of Axles | 2 | ||
Wheelbase | 4500,5500,5150,5750,4700mm | ||
Axle Load | 6500/11500kg | ||
Front Wheel Track | 2008,1960,1931,1982,1952mm | ||
Rear Wheel Track | 1860,1840mm | ||
Approaching/Departuring Angle | 18/13,18/11° | ||
Tire | |||
Number of Tires | 6 | ||
Tire | 10.00R20 18PR,11R22.5 18PR,275/80R22.5 18PR | ||
Engine | |||
Model | Brand | Power | Displacement |
D6.7NS6B230 | Dongfeng Cummins Engine Co., Ltd. | 169kW | 6700ml |
F4.5NS6B220 | Beijing Foton Cummins Engine Corporation | 162kW | 4500ml |
B6.2NS6B210 | Dongfeng Cummins Engine Co., Ltd. | 154kW | 6200ml |
B6.2NS6B230 | Dongfeng Cummins Engine Co., Ltd. | 169kW | 6200ml |
F4.5NS6B190 | Beijing Foton Cummins Engine Corporation | 140kW | 4500ml |
D6.7NS6B260 | Dongfeng Cummins Engine Co., Ltd. | 191kW | 6700ml |
CA6DH1-22E6 | China FAW Group Corporation | 165kW | 5700ml |
