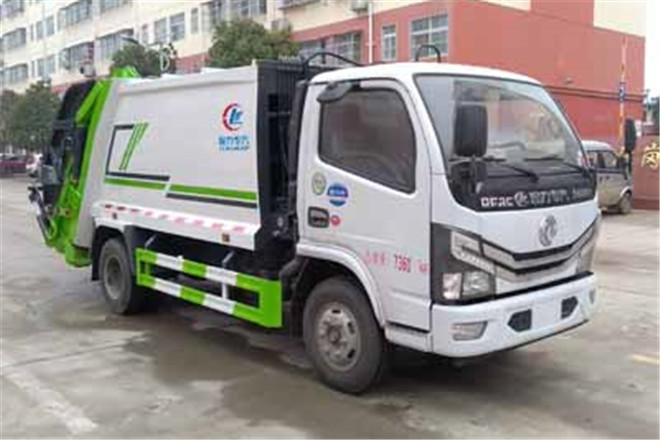

CLW5070ZYSD6 Compression Refuse Collector

CLW5070ZYSD6 Compression Refuse Collector
CLW5070ZYSD6 Compression Refuse Collector
Basic Information
Usage Refuse Collector
Fuel Type Diesel
Emission Standard GB3847-2005,GB17691-2018 national Ⅵ emission standards
Length 6970mm
Width 2080mm
Height 2570mm
Curb Weight 5600kg
Gross Weight 7360kg
Seats 2
Max Speed 110km/h
Chassis
Chassis Model EQ1075SJ3CDF
Front/Rear Overhang 1055/2052mm
Number of Leaf Springs 6/6+5
Number of Axles 2
Wheelbase 2700,2950,3308mm
Axle Load 2640/4720kg
Front Wheel Track 1525,1519mm
Rear Wheel Track 1498,1516mm
Approaching/Departuring Angle 27.7/12°
Tire
Number of Tires 6
Tire 7.00R16
Engine
Model Brand Power Displacement
D20TCIF1 Kunming Yunnei Power Co., Ltd. 93kW 1999ml
YCY24140-60 Guangxi Yuchai Machinery Co., Ltd. 103kW 2360ml
CA4DB1-11E6 China FAW Group Corporation 81kW 2207ml
ZD30D16-6N Dongfeng Light-duty Engine Co., Ltd. 120kW 2953ml
CY4BK461 Dongfeng Chaoyang Diesel Co., Ltd. 95kW 3707ml
CY4BK161 Dongfeng Chaoyang Diesel Co., Ltd. 105kW 3856ml
Q23-115E60 Anhui Quanchai Power Co., Ltd. 85kW 2300ml
H20-120E60 Anhui Quanchai Power Co., Ltd. 90kW 2000ml
CA4DB1-13E6 China FAW Group Corporation 95kW 2207ml
