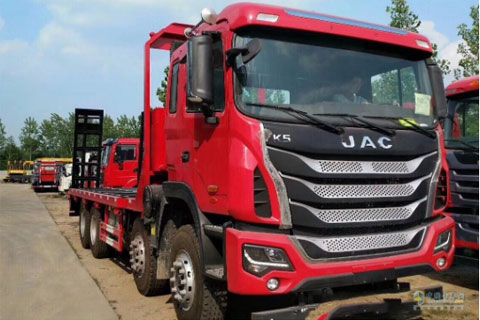

JAC Gallop K5 8×4 Flat Bed Truck+Weichai Power

JAC Gallop K5 8×4 Flat Bed Truck+Weichai Power
JAC Gallop K5 8×4 Flat Bed Truck+Weichai Power
Model: DLQ5310TPBY5
Overall Dimensions: 9800,10500×2500×3450(mm)
Curb Weight: 15300(Kg)
Payload Weight: 15505,15570(Kg)
Gross Weight: 31000(Kg)
Max Speed: 85(km/h)
Wheelbase: 1800+3200+1350(mm)
Engine Model: WP7.270E51; WP7.300E51
Fuel Type: Diesel
Engine Displacement: 7.47L
Engine Max Power: 199kw/270HP; 220kw/299HP
Emission Standard: Euro Ⅴ
Fuel Consumption: 45.5L/100km
Tire: 11.00R20 16PR,12.00R20 18PR,12R22.5,10.00R20
Chassis Model: HFC3311P2K4H32S3V
Approaching/Departuring Angle: 18/43(°)
Front/Rear Suspension: 1495/1955,1495/2655(mm)
Number of Wheel: 12
Rear Wheel Tread:
1860/1860,1900/1900mm
Front Wheel Tread:
2040/2040,2080/2080mm
Axle Load: 6500/6500/18000 (for a group of axles)
Number of Leaf Spring: 9/9/12
Number of Axles: 4
