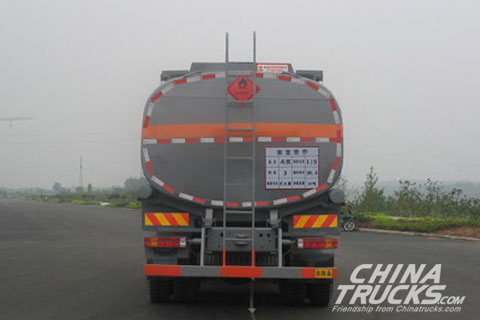

FAW chemical truck 25CBM 6*4

FAW chemical truck 25CBM 6*4
FAW chemical truck 25CBM 6*4 FAW chemical truck 25CBM 6*4
Basic Information
Usage Others

Model: CLW5251GHYC3

Overall Dimensions:10000*2490*3070mm

Curb Weight: 11805kg

Gross Weight: 25000kg

Driving Type: 6x4

Max Speed: 80km/h

Wheelbase: 4725+1350mm

Engine Model: CA6DF3-22E3

Fuel Type: Diesel

Engine Displacement: 6.74L

Fuel Consumption: 18

Tank Volume: 15001 - 30000L

Horsepower: 150 - 250hp

Transmission Type: Manual

Chassis Model: CA1253P7K2L7T1E

Tank Dimension: 7400*2400*1680mm

Approach/departure angle(°): 18/10

Front/Rear overhang(mm):1375/2550mm

Horsepower: 162/220kw/ps

Engine Type: 6 cylinder,in-line , turcharger and after cooled

Front Tread: 1914mm

Rear Tread: 1847mm

Front axle loading(T): 5

Rear axle loading(T): 10

Gearbox: 6 speed

Brake: By air,with power assisted , pressure boost

Tire Spec.: 9.00-20

Tyre Nos: 10+1(spare part)

Equipment

1. Tank can be separated to several unattached small tanks to fill different fuels

2. Tank meterial: carbon steel,stainless steel,FRP etc. optional

3. Tank shape:roundless,quadrate,oval optional

4. Oil pump: self-priming pump,gear pump optional

5. Oil meter:single,double,Fiscal processor optional
