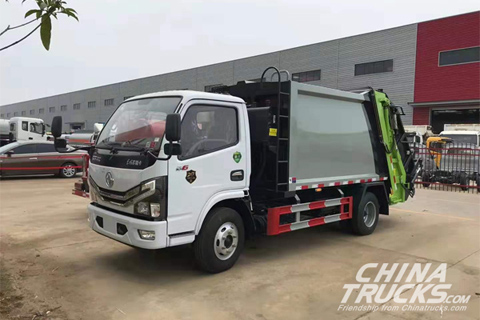

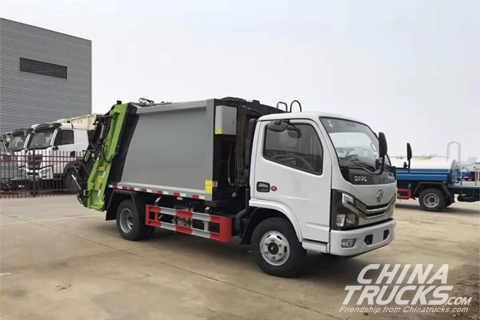

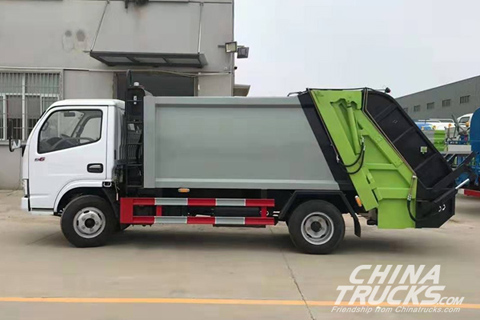

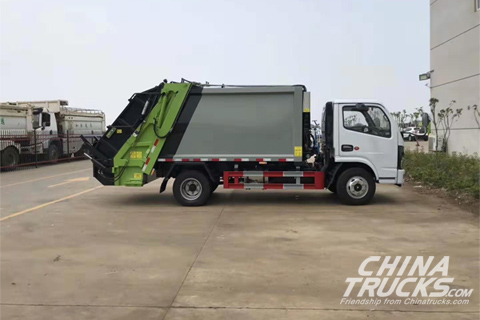

Chengli CLW5070ZYSD6 Compress Garbage Truck(Dongfeng Duolika 5 Cubic Meter)+Yunn

Model: CLW5070ZYSD6
Overall Dimension: 6970×2080×2570(mm)
Curb Weight: 5600(kg)
Payload Weight: 1630(kg)
Gross Weight: 7360(kg)
Max Speed: 110(km/h)
Wheelbase: 2700,2950,3308(mm)
Engine Model: D20TCIF1, YCY24140-60, CA4DB1-11E6, ZD30D16-6N, CY4BK461
Engine Displacement: 1.999, 2.36, 2.207,2.953,3.707, 3.856,2.3, 2,2.207L
Engine Max Power: 93,103,81,120,95,105,85,90, 95kw
Chassis Model: EQ1075SJ3CDF
Approaching/Departuring Angle: 27.7/12(°)
Axle Load: 2640/4720kg
Front/Rear Overhang: 1055/2052(mm)
Number of Axles:2
Front Wheel Track:1525,1519(mm)
Rear Wheel Track: 1498,1516(mm)
Number of Leaf Spring: 6/6+5
Number of Tires: 6
