| Basic Information | |||

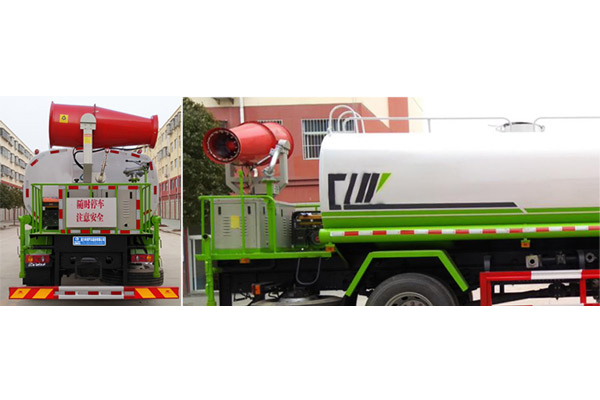

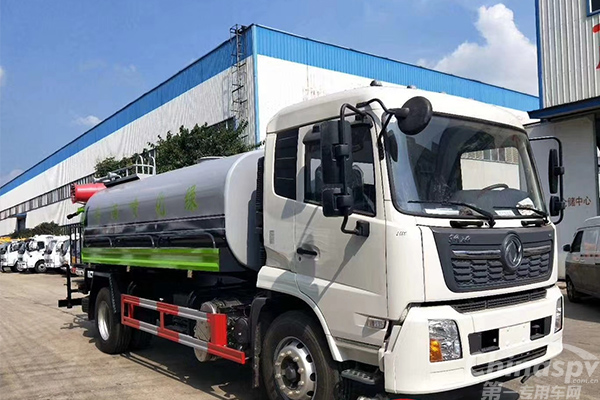

| Usage | Tree Sprinkling Tanker | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005, GB17691-2018 National VI Emission Standards | ||
| Length | 8580,8550,8380,8350mm | ||
| Width | 2500mm | ||
| Height | 3200mm | ||
| Curb Weight | 7725kg | ||
| Gross Weight | 18000kg | ||
| Max Speed | 89km/h | ||
| Chassis | |||

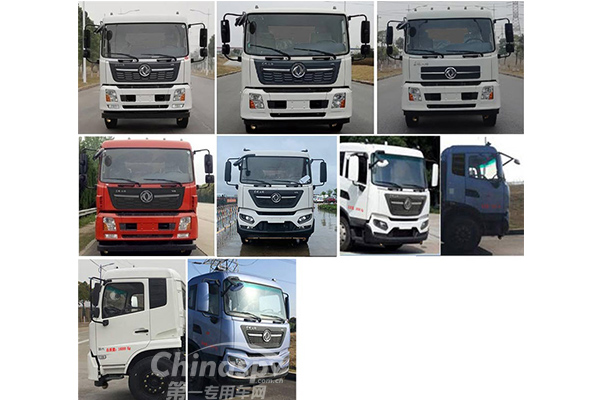

| Chassis Model | DFH1180EX8 | ||
| Front/Rear Overhang | 1430/2450,1400/2450mm | ||
| Number of Leaf Springs | 7/9+6,8/10+8,8/9+6,11/10+8 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3800,3950,4200,4500,4700,5000,5300,5800,5600mm | ||
| Axle Load | 6500/11500kg | ||
| Front Wheel Track | 1876,1896,1920,1950,1914,1934,1980,2000,1815,1860mm | ||
| Rear Wheel Track | 1820,1860,1800mm | ||
| Approaching/Departuring Angle | 15/12° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 10.00R20 18PR,275/80R22.5 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| DDi50E190-60 | 136 - 169kW | 4000 - 6700ml | |
| D4.5NS6B190 | |||
| D6.7NS6B230 | |||
| B6.2NS6B210 | |||
| B6.2NS6B230 | |||
| DDi50E220-60 | |||
| D4.0NS6B185 | |||
