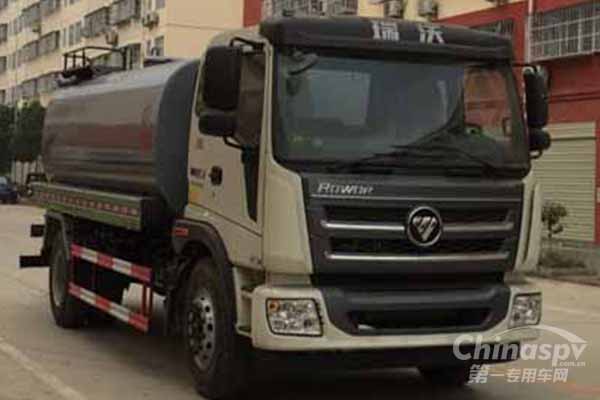

| Model | CLW5180GSSB5 |
| Gross Weight | 18000(kg) |
| Volume | 11.81(cubic meter) |
| Rated Load | 11320,11255(Kg) |
| Curb Weight | 6550(kg) |
| Dimensions | 8150×2500×3200(mm) |
| Approaching/Departuring Angle | 17/13(°) |
| Front/Rear Overhang | 1350/2300(mm) |
| Number of Axles | 2 |
| Wheelbase | 4500,4800,5250,5700(mm) |
| Axle Load | 6500/11500(kg) |
| Max Speed | 90 (km/h) |
| Chassis type | BJ1185VLPEN-FA |
| Number of Tires | 6 |
| Number of Leaf Spring | 8/10+8,4/10+3,10/10+9 |
| Tire | 10.00R20 18PR,11R22.5 18PR |
| Front Wheel Track | 1904,1953(mm) |
| Rear Wheel Track | 1860,1810(mm) |
| Chassis Discharge Standard | GB17691-2005 National V Emission Standards, GB3847-2005 |
| Fuel Type | Diesel |
| Engine Model | ISF3.8s5168, ISF4.5S5185, YC4S170-50, YC4EG170-50, YC6J180-52, YC6J220-52, YC6J200-52, YC6JA220-50 |
| Engine Displacement | 3760 - 6870(ml) |
| Engine Max Power | 125 - 162(kw) |
