| Model | CLW5258TXSE6 |
| Gross Weight | 25000(kg) |
| Rated Load | 9020,8955(Kg) |
| Curb Weight | 15850(kg) |
| Dimensions | 9475,9875,10475,11025×2500×31000(mm) |
| Approaching/Departuring Angle | 29/13(°) |
| Front/Rear Overhang | 1475/2300,1515/2260(mm) |
| Number of Axles | 3 |
| Wheelbase | 4350+1350,4750+1350,5900+1350,5350+1350,3400+1350,3650+1350(mm) |
| Axle Load | 7000/18000 (kg) (Two axles) |
| Max Speed | 89(km/h) |

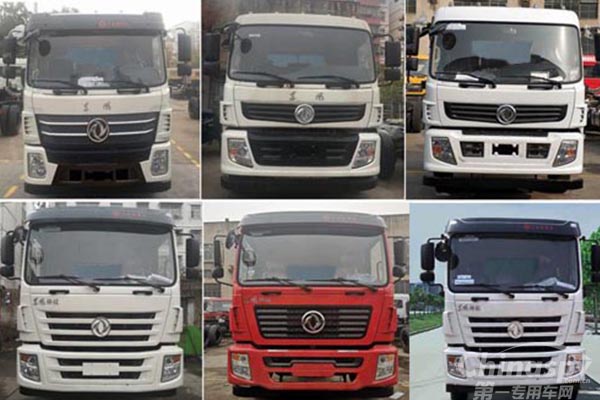

| Chassis type | EQ1258GSZ6DJ |
| Number of Tires | 10 |
| Number of Leaf Spring | 8/10,9/10 |
| Tire | 11.00R20 18PR,295/80R22.5 18PR |
| Front Wheel Track | 1860,1940,1960,1985(mm) |
| Rear Wheel Track | 1750/1750,1860/1860,1880/1880(mm) |
| Chassis Discharge Standard | GB3847-2005, GB17691-2018 National VI Emission Standards |
| Fuel Type | NG |
| Engine Model | B6.2NS6B230, B6.2NS6B260, YCS06245-60, YCS06270-60, WP7.300E61, DDi75E300-60, WP8.320E61, YCK05230-60, WP6H245E61, WP6H270E61 |
| Engine Displacement | 5132 - 7800(ml) |
| Engine Max Power | 169 - 235(kw) |
