position : Home>>products>>CLW5180TXSD6 Cleaning Sweeper

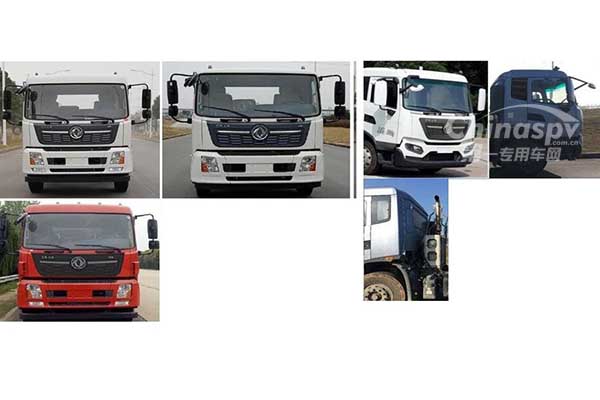

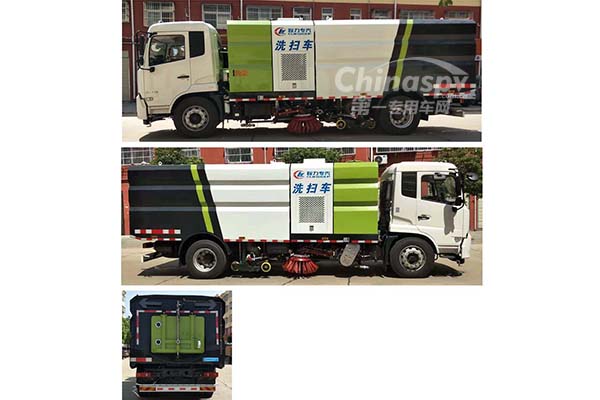

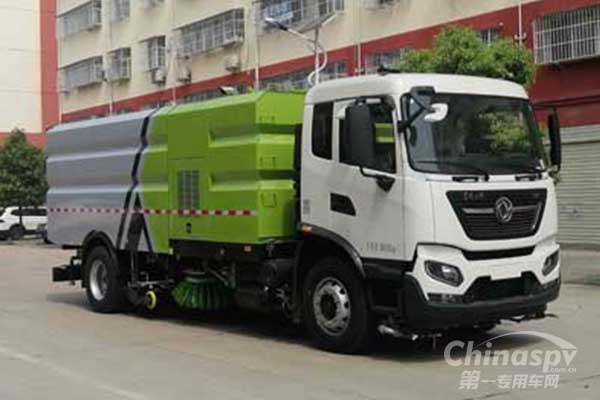

CLW5180TXSD6 Cleaning Sweeper

CLW5180TXSD6 Cleaning Sweeper
CLW5180TXSD6 Cleaning Sweeper CLW5180TXSD6 Cleaning Sweeper CLW5180TXSD6 Cleaning Sweeper
Views:0
Basic Information
Usage Vacuum Sweeper
Model CLW5180TXSD6
Gross Weight 18000(kg)
Rated Load 6870,6805,5410,5345,6070,6005(Kg)
Curb Weight 11000,12460,11800(kg)
Dimensions 9350,8850,8550,8250,8050,7750,7500,7350×2480×3130(mm)
Approaching/Departuring Angle 17/12(°)
Front/Rear Overhang 1400/2150,1430/2120(mm)
Number of Axles 2
Wheelbase 3800,3950,4200,4500,4700,5000,5300,5800,5600(mm)
Axle Load 6500/11500(kg)
Max Speed 89(km/h)
Chassis type DFH1180EX8
Number of Tires 6
Number of Leaf Spring 7/9+6,8/10+8,8/9+6,11/10+8,3/10+8
Tire 10.00R20 18PR,275/80R22.5 18PR
Front Wheel Track 1876,1896,1920,1950,1914,1934,1980,2000,1815,1860(mm)
Rear Wheel Track 1820,1860,1800(mm)
Chassis Discharge Standard GB3847-2005, GB17691-2018 National VI Emission Standards
Fuel Type Diesel
Engine Model D4.5NS6B190, D6.7NS6B230, B6.2NS6B210, D4.0NS6B185, DDi50E220-60, B6.2NS6B230, DDi50E190-60, D4.0NS6B195
Engine Displacement 4000 - 6700(ml)
Engine Max Power 136 - 169(kw)
