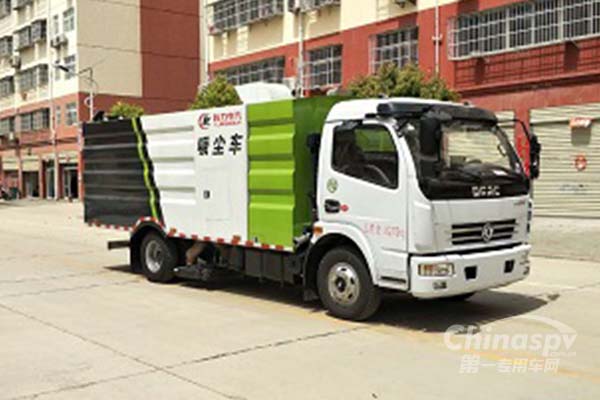

| Model | CLW5080TXCE5 |
| Gross Weight | 8275 (kg) |
| Rated Load | 1800(Kg) |
| Curb Weight | 6280(kg) |
| Dimensions | 7160,6580×2200×2750(mm) |
| Approaching/Departuring Angle | 20/12,20/10,20/9,20/8,20/12,20/11(°) |
| Front/Rear Overhang | 1130/2230,1150/2210,1130/2142,1130/1930,1150/1910 (mm) |
| Number of Axles | 2 |
| Wheelbase | 3800,3308,4100(mm) |
| Axle Load | 3300/4975(kg) |
| Max Speed | 103 (km/h) |
| Chassis type | EQ1080SJ8BDC |
| Number of Tires | 6 |
| Number of Leaf Spring | 8/10+7 |
| Tire | 7.50R16,7.50R16,245/70R19.5 12PR |
| Front Wheel Track | 1740(mm) |
| Rear Wheel Track | 1610,1586,1800(mm) |
| Chassis Discharge Standard | GB17691-2005 National V Emission Standards, GB3847-2005 |
| Fuel Type | Diesel |
| Engine Model | CY4SK251, YC4FA130-50, ISF3.8s5141, ZD30D15-5N, 4DX23-140E5, YN38CRE1, YC4Y22-15050, CY4SK251, YC4FA130-50, ISF3.8s5141, ZD30D15-5N, 4DX23-140E5, YN38CRE1, YC4Y22-15050, YC4S150-50 |
| Engine Displacement | 2169 - 3857(ml) |
| Engine Max Power | 95 - 115(kw) |
