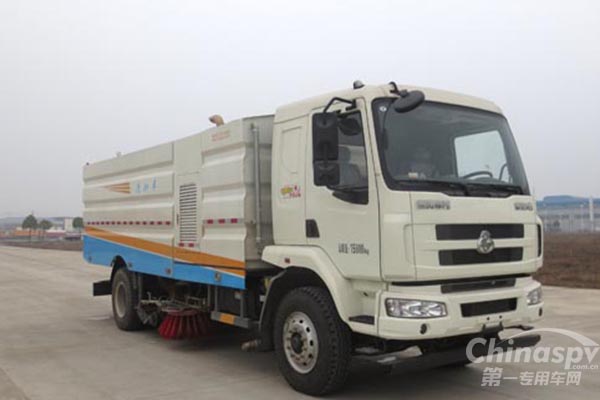

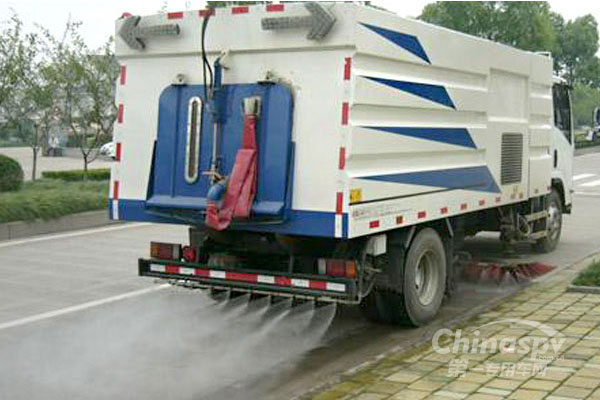

| Model | CSC5165TXSL |
| Gross Weight | 15800 (kg) |
| Rated Load | 3155(Kg) |
| Curb Weight | 12450(kg) |
| Dimensions | 7885,8185,8785×2500×3050(mm) |
| Approaching/Departuring Angle | 21/12(°) |
| Front/Rear Overhang | 1445/2240(mm) |
| Number of Axles | 2 |
| Wheelbase | 5100,4500,4200,3800(mm) |
| Axle Load | 5600/10200(kg) |
| Max Speed | 90(km/h) |
| Chassis type | LZ1165M3ABT |
| Number of Tires | 6 |
| Number of Leaf Spring | 11/12+9,2/2+1,3/4+3,2/3+2,8/10+8,2/12+9,3/12+9 |
| Tire | 9.00R20,10.00-20,10.00R20,11R22.5 |
| Front Wheel Track | 1940,1916,2046(mm) |
| Rear Wheel Track | 1860(mm) |
| Chassis Discharge Standard | GB17691-2005 National V Emission Standards, GB3847-2005 |
| Fuel Type | Diesel |

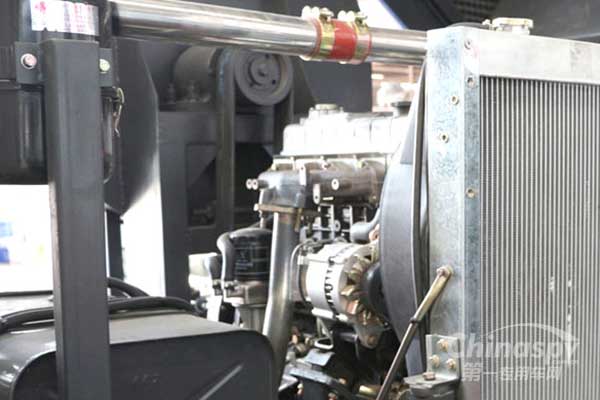

| Engine Model | YC6J180-50, YC6J200-50, ISD210 50, YC6JA200-50 |
| Engine Displacement | 6500 - 6870(ml) |
| Engine Max Power | 132 - 155(kw) |
