| Basic Information |
| Usage |

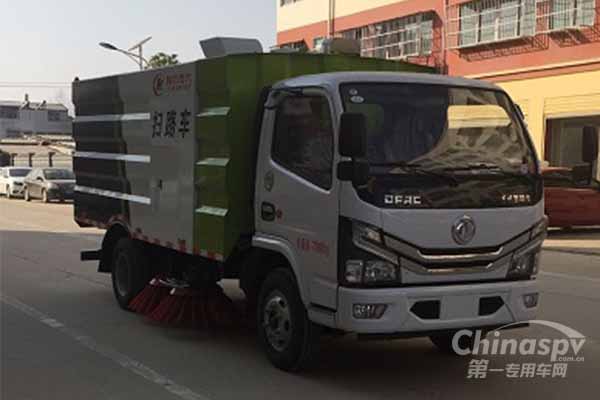

Road Maintenance Vehicle |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2018 National VI Emission Standards |
| Length |
6200,5905,5505mm |
| Width |
2000mm |
| Height |
2590mm |
| Gross Weight |
7360kg |
| Max Speed |
110km/h |
| Chassis |
| Chassis Model |
EQ1075SJ3CDF |
| Front/Rear Overhang |
1055/1837,1055/1900,1055/1750mm |
| Number of Leaf Springs |
6/6+5,3/3+3,5/4+3,6/4+3,6/5+2,6/3+3,3/6+5,3/3+2,2/2 |
| Number of Axles |
2 |
| Wheelbase |
2700,2950,3308mm |
| Axle Load |
2640/4720kg |
| Front Wheel Track |
1525,1519,1503,1613mm |
| Rear Wheel Track |
1498,1516,1586,1670,1650mm |
| Approaching/Departuring Angle |
24/10,24/11° |
| Tire |
| Number of Tires |
6 |
| Tire |
7.00R16,7.00R16LT,7.00R16LT 14PR |
| Engine |
| Model |
CY4BK461, CA4DB1-11E6, CY4BK161, D20TCIF1, Q28-130E60, H20-120E60, CA4DB1-13E6, YCY24140-60, D20TCIF11, Q23-115E60, ZD30D16-6N, M9T-600 |
| Displacement |
1999 - 3856ml |
