| Basic Information | |||

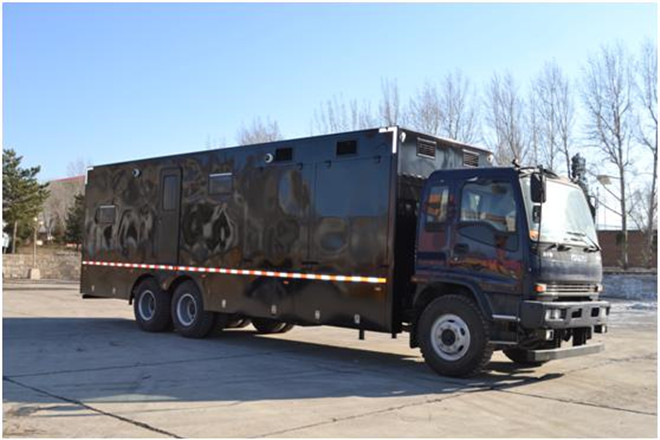

| Usage | Police Van | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national IV emission standards, GB3847-2005 | ||
| Length | 11110,11355mm | ||
| Width | 2500mm | ||
| Height | 3500mm | ||
| Curb Weight | 14805kg | ||
| Gross Weight | 15000kg | ||
| Seats | 3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | QL1250DTFZY | ||
| Front/Rear Overhang | 1335/2775,1580/2775mm | ||
| Number of Leaf Springs | 9/10 | ||
| Number of Axles | 3 | ||
| Wheelbase | 5700+1300mm | ||
| Axle Load | 5295/9705 (two axles)kg | ||
| Front Wheel Track | 1960mm | ||
| Rear Wheel Track | 1855/1855mm | ||
| Approaching/Departuring Angle | 18/9° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 11.00-20 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| 6HK1-TCSG40 | Qingling Isuzu (Chongqing) Engine Co., Ltd. | 206kW | 7790ml |
