| Basic Information | |||

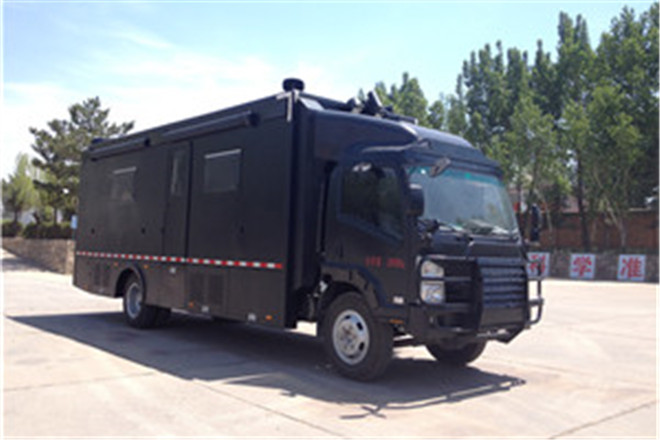

| Usage | Police Van | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national IV emission standards, GB3847-2005 | ||
| Length | 9055,9300mm | ||
| Width | 2500mm | ||
| Height | 3610mm | ||
| Curb Weight | 9805kg | ||
| Gross Weight | 10000kg | ||
| Seats | 3 | ||
| Max Speed | 110km/h | ||
| Chassis | |||
| Chassis Model | QL11009PARY | ||
| Front/Rear Overhang | 1110/2745,1355/2745mm | ||
| Number of Leaf Springs | 8/10+6 | ||
| Number of Axles | 2 | ||
| Wheelbase | 5200mm | ||
| Axle Load | 3350/6650kg | ||
| Front Wheel Track | 1680mm | ||
| Rear Wheel Track | 1650mm | ||
| Approaching/Departuring Angle | 20/10,21/10° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 235/75R17.5-14PR,8.25-20-14PR,8.25R20-14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| 4HK1-TCG40 | Qingling Isuzu (Chongqing) Engine Co., Ltd. | 139kW | 5193ml |
