| Basic Information | |||

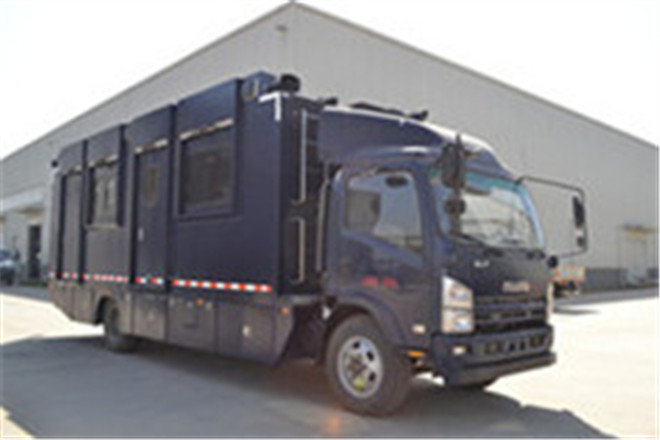

| Usage | Police Van | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅳ emission standards, GB3847-2005 | ||
| Length | 9275mm | ||
| Width | 2550mm | ||
| Height | 3540mm | ||
| Curb Weight | 9040kg | ||
| Gross Weight | 9235kg | ||
| Seats | 3 | ||
| Max Speed | 110km/h | ||
| Chassis | |||
| Chassis Model | QL5100XXY9PAR, Qingling Motors | ||
| Front/Rear Overhang | 1110/2965mm | ||
| Number of Leaf Springs | 8/10+6 | ||
| Number of Axles | 2 | ||
| Wheelbase | 5200mm | ||
| Axle Load | 3250/5985kg | ||
| Front Wheel Track | 1680mm | ||
| Rear Wheel Track | 1650mm | ||
| Approaching/Departuring Angle | 20/9° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 235/75R17.5-14PR,8.25-20-14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| 4HK1-TCG40 | Qingling Isuzu (Chongqing) Engine Co., Ltd. | 139kW | 5193ml |
