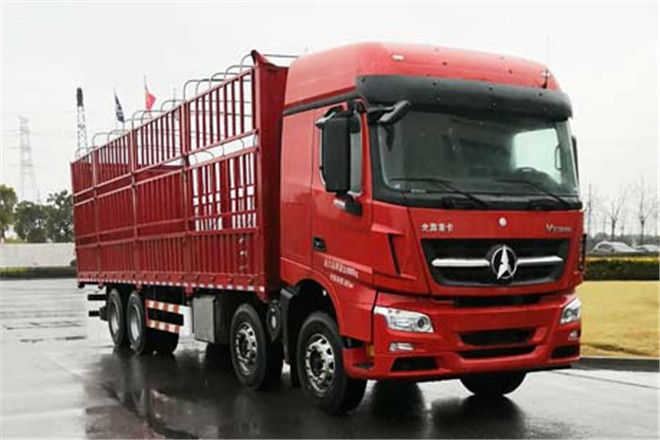

Beiben ND5310CCYZ25 Stake Truck
| Basic Information |
| Usage |
Delivery Vehicle |
| Fuel Type |
Diesel |
| Emission Standard |
GB3847-2005,GB17691-2018 national Ⅵ emission standards |
| Length |
12000mm |
| Width |
2550mm |
| Height |
3960mm |
| Curb Weight |
12740kg |
| Gross Weight |
31000kg |
| Seats |
2 |
| Max Speed |
80km/h |
| Chassis |
| Chassis Model |
ND1310DD6J7Z01 |
| Front/Rear Overhang |
1500/2550mm |
| Number of Leaf Springs |
2/2/3,2/2/- |
| Number of Axles |
4 |
| Wheelbase |
1950+4650+1350,1950+4350+1350mm |
| Axle Load |
6500/6500/18000(two axles)kg |
| Front Wheel Track |
2045/2045,2063/2063mm |
| Rear Wheel Track |
1850/1850,1870/1870mm |
| Approaching/Departuring Angle |
14.5/11° |
| Tire |
| Number of Tires |
12 |
| Tire |
12R22.5 18PR,295/80R22.5 18PR,11.00R20 18PR |
| Engine |
| Model |
WP10H350E62,WP10H375E62 |
| Power |
257,276kW |
| Brand |
Weichai Holding Group Co., Ltd.; Weichai Holding Group Co., Ltd. |
| Displacement |
9500,9500ml |
