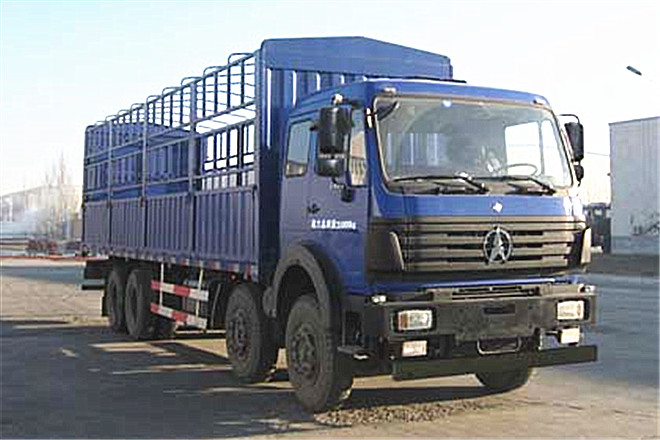

Beiben ND5310CCYZ11 Stake Truck
| Basic Information |
| Usage |
Delivery Vehicle |
| Fuel Type |
Diesel |
| Emission Standard |
GB3847-2005,GB17691-2005 national Ⅳ emission standards |
| Length |
11980mm |
| Width |
2500mm |
| Height |
3900mm |
| Curb Weight |
13450kg |
| Gross Weight |
31000kg |
| Seats |
2,3 |
| Max Speed |
90km/h |
| Chassis |
| Chassis Model |
ND13104D46J |
| Front/Rear Overhang |
1410/2920,1410/2870,1410/2620,1410/2570mm |
| Number of Leaf Springs |
12/12/13 |
| Number of Axles |
4 |
| Wheelbase |
1950+4350+1350,1950+4300+1450,1950+4650+1350,1950+4600+1450mm |
| Axle Load |
6500/6500/18000(two axles)kg |
| Front Wheel Track |
2045/2045mm |
| Rear Wheel Track |
1872/1872mm |
| Approaching/Departuring Angle |
26/22° |
| Tire |
| Number of Tires |
12 |
| Tire |
12.00-20 16PR,12.00R20 16PR,11.00-20 18PR,11.00R20 18PR,315/80R22.5 16PR |
| Engine |
| Model |
WP10.336E40,WP12.375E40 |
| Power |
247,276kW |
| Brand |
Weichai Holding Group Co., Ltd.; Weichai Holding Group Co., Ltd. |
| Displacement |
9726,11596ml |
