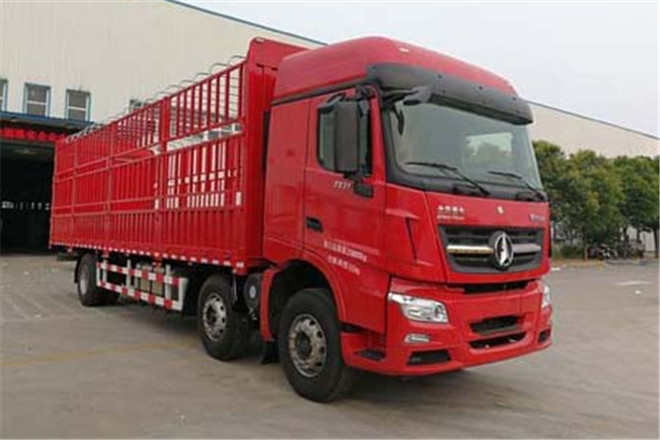

Beiben ND5250CCYZ06 Stake Truck
| Basic Information |
| Usage |
Delivery Vehicle |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length |
12000mm |
| Width |
2550mm |
| Height |
3960mm |
| Curb Weight |
11080kg |
| Gross Weight |
25000kg |
| Seats |
2,3 |
| Max Speed |
90km/h |
| Chassis |
| Chassis Model |
ND1250LD5J7Z01 |
| Front/Rear Overhang |
1500/2900mm |
| Number of Leaf Springs |
2/2/3+3 |
| Number of Axles |
3 |
| Wheelbase |
1950+5650,1950+5050mm |
| Axle Load |
7000/7000/11000kg |
| Front Wheel Track |
2045/2045,2064/2064mm |
| Rear Wheel Track |
1850,1868mm |
| Approaching/Departuring Angle |
14.5/11° |
| Tire |
| Number of Tires |
8 |
| Tire |
12R22.5 18PR |
| Engine |
| Model |
WP9H310E50,WP10H350E50 |
| Power |
228,257kW |
| Brand |
Weichai Holding Group Co., Ltd.; Weichai Holding Group Co., Ltd. |
| Displacement |
8800,9500ml |
