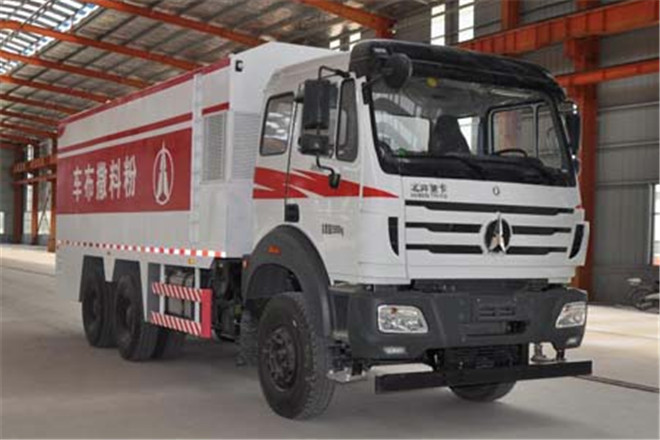

Beiben ND5250TFSZ01 Filler Distributor
| Basic Information |
| Usage |
Engineering Vehicle |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length |
8730mm |
| Width |
2500,2550mm |
| Height |
3500,3700mm |
| Curb Weight |
17500kg |
| Gross Weight |
25000kg |
| Seats |
2 |
| Max Speed |
80km/h |
| Chassis |
| Chassis Model |
ND1250BD5J6Z02 |
| Front/Rear Overhang |
1435/2045mm |
| Number of Leaf Springs |
10/13 |
| Number of Axles |
3 |
| Wheelbase |
3800+1450mm |
| Axle Load |
7000/18000(two axles)kg |
| Front Wheel Track |
2004mm |
| Rear Wheel Track |
1878/1878,1904/1904mm |
| Approaching/Departuring Angle |
17/16° |
| Tire |
| Number of Tires |
10 |
| Tire |
11.00R20 18PR,12.00R20 16PR,12R22.5 18PR |
| Engine |
| Model |
WP10.350E53,WP12.375E50 |
| Power |
257,276kW |
| Brand |
Weichai Holding Group Co., Ltd.; Weichai Holding Group Co., Ltd. |
| Displacement |
9726,11596ml |
