| Basic Information | |||

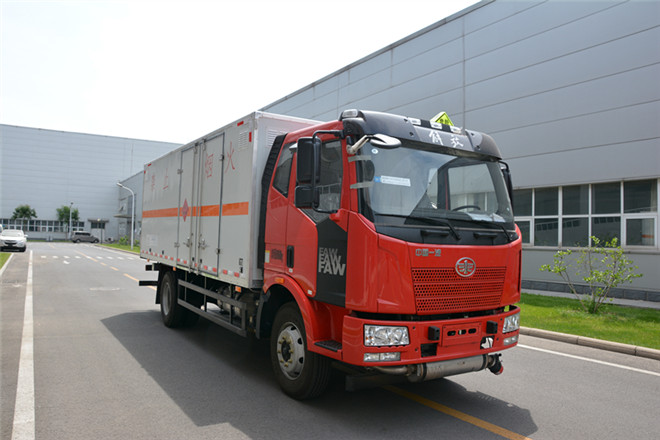

| Usage | Delivery Vehicle | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 8485mm | ||
| Width | 2480mm | ||
| Height | 3270mm | ||
| Curb Weight | 6000kg | ||
| Gross Weight | 16000kg | ||
| Seats | 3 | ||
| Max Speed | 79km/h | ||
| Chassis | |||
| Chassis Model | CA5160GYYP62K1L3E5 | ||
| Front/Rear Overhang | 1400/2385mm | ||
| Number of Leaf Springs | 10/12+8,7/10+3,7/7+6 | ||
| Number of Axles | 2 | ||
| Wheelbase | 4700,5300mm | ||
| Axle Load | 5600/10400kg | ||
| Front Wheel Track | 1890,1850mm | ||
| Rear Wheel Track | 1860,1800mm | ||
| Approaching/Departuring Angle | 15/15° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 9.00R20,10.00R20,11R22.5,10R22.5 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| BF6M2012-18E5 | China FAW Group Corporation | 139kW | 6060ml |
| CA4DK1-22E51 | China FAW Group Corporation | 165kW | 4764ml |
| CA4DK1-18E51 | China FAW Group Corporation | 139kW | 4764ml |
