| Basic Information | |||

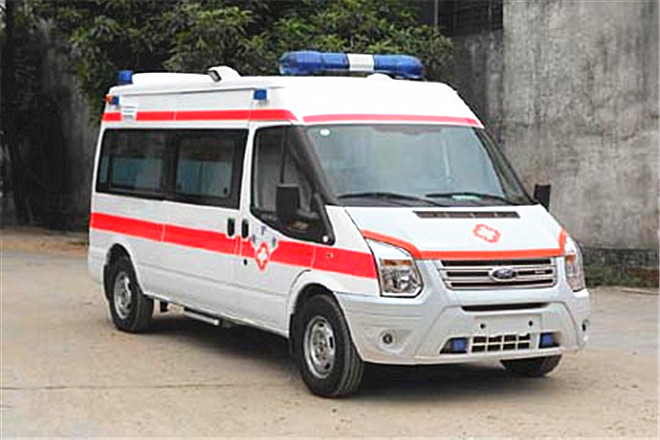

| Usage | Ambulance | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB18352.3-2005 national Ⅳ emission standards, GB3847-2005 | ||
| Length | 5780mm | ||
| Width | 2000mm | ||
| Height | 2360,2510,2590mm | ||
| Curb Weight | 2640kg | ||
| Gross Weight | 3490kg | ||
| Seats | 5-9 | ||
| Max Speed | 145km/h | ||
| Chassis | |||
| Chassis Model | JX6571T-M4, Jiangling Motors Group Co., Ltd. | ||
| Front/Rear Overhang | 933/1097mm | ||
| Number of Leaf Springs | -/2 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3750mm | ||
| Axle Load | 1635/1855kg | ||
| Front Wheel Track | 1740mm | ||
| Rear Wheel Track | 1704mm | ||
| Approaching/Departuring Angle | 22/24° | ||
| Tire | |||
| Number of Tires | 4 | ||
| Tire | 215/75R16LT | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| DURATORQ4D244L | Jiangling Motors Group Co., Ltd. | 103kW | 2402ml |
