| Basic Information | |||

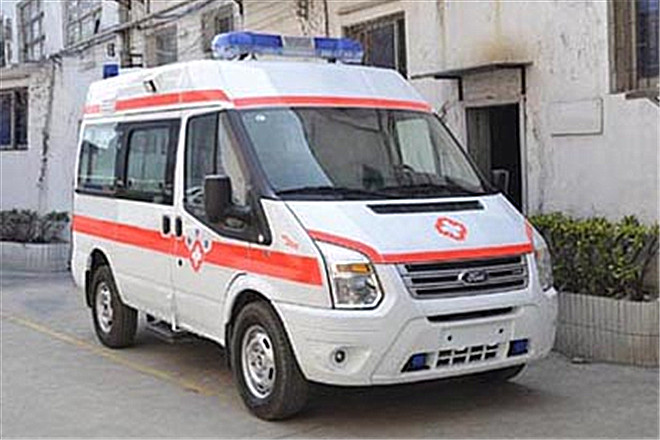

| Usage | Ambulance | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB18352.3-2005 national Ⅳ emission standards, GB3847-2005 | ||
| Length | 4963mm | ||
| Width | 2000mm | ||
| Height | 2550mm | ||
| Curb Weight | 2450kg | ||
| Gross Weight | 3300kg | ||
| Seats | 5-9 | ||
| Max Speed | 130km/h | ||
| Chassis | |||
| Chassis Model | JX6491TA-M4, Jiangling Motors Froup Co., Ltd. | ||
| Front/Rear Overhang | 933/1097mm | ||
| Number of Leaf Springs | -/2 | ||
| Number of Axles | 2 | ||
| Wheelbase | 2933mm | ||
| Axle Load | 1465/1835kg | ||
| Front Wheel Track | 1745mm | ||
| Rear Wheel Track | 1700mm | ||
| Approaching/Departuring Angle | 22/25° | ||
| Tire | |||
| Number of Tires | 4 | ||
| Tire | 215/75R16LT | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| DURATORQ4D24A4L | Jiangling Motors Group Co., Ltd. | 85kW | 2402ml |
