| Basic Information | |||

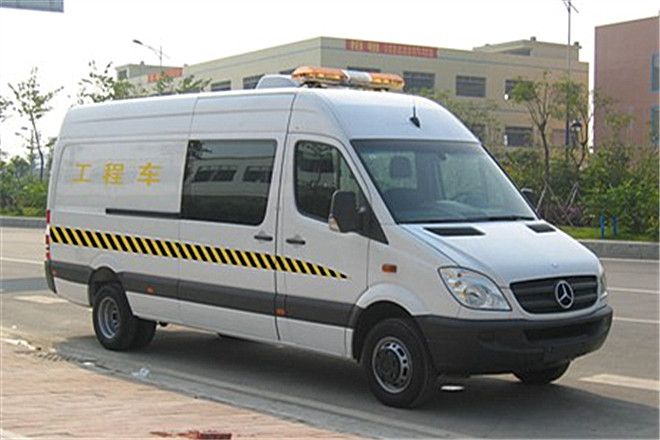

| Usage | Engineering Vehicle | ||
| Fuel Type | Gasoline | ||
| Emission Standard | GB14762-2008 national Ⅳ emission standards, GB18285-2005,GB11340-2005,GB14763-2005 | ||
| Length | 6945,7345mm | ||
| Width | 1993mm | ||
| Height | 3030,3100,3150,3200,3250mm | ||
| Curb Weight | 3750kg | ||
| Gross Weight | 5000,5300kg | ||
| Seats | 7,5,3 | ||
| Max Speed | 98km/h | ||
| Chassis | |||
| Chassis Model | Sprinter 524, Daimler AG | ||
| Front/Rear Overhang | 1005/1615,1165/1855mm | ||
| Number of Leaf Springs | -/3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 4325mm | ||
| Axle Load | 1850/3150,1800/3500kg | ||
| Front Wheel Track | 1708mm | ||
| Rear Wheel Track | 1521mm | ||
| Approaching/Departuring Angle | 27/14,26/12° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 205/75R16C | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| 272979 | Daimler AG | 190kW | 3498ml |
