| Basic Information | |||

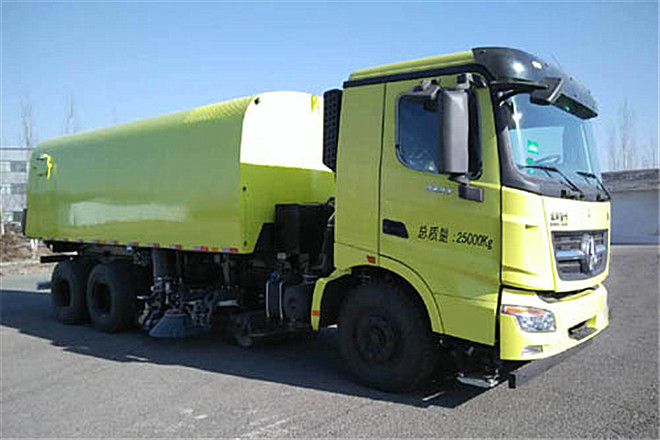

| Usage | Vacuum Sweeper | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 9585,10560mm | ||
| Width | 2500mm | ||
| Height | 3465mm | ||
| Curb Weight | 16440kg | ||
| Gross Weight | 25000kg | ||
| Seats | 2 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | ND1250BD5J7Z01 | ||
| Front/Rear Overhang | 1515/1620,1515/2595mm | ||
| Number of Leaf Springs | 9/10 | ||
| Number of Axles | 3 | ||
| Wheelbase | 5100+1350mm | ||
| Axle Load | 7000/18000(two axles)kg | ||
| Front Wheel Track | 1985mm | ||
| Rear Wheel Track | 1848/1848mm | ||
| Approaching/Departuring Angle | 13/32,13/30° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 11.00R20 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP7.270E51 | Weichai Holding Group Co., Ltd. | 199kW | 7470ml |
