| Basic Information | |||

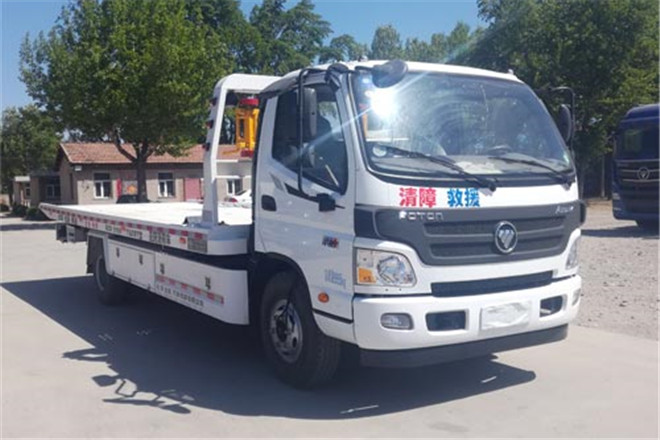

| Usage | Road-block Removal Truck | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national V emission standards, GB3847-2005 | ||
| Length | 8510mm | ||
| Width | 2400,2500mm | ||
| Height | 2390mm | ||
| Curb Weight | 6740kg | ||
| Gross Weight | 9995kg | ||
| Seats | 3 | ||
| Max Speed | 95km/h | ||
| Chassis | |||
| Chassis Model | BJ1109VEJED-A1 | ||
| Front/Rear Overhang | 1120/2890mm | ||
| Number of Leaf Springs | 9/10+10,9/11+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 4200,4500mm | ||
| Axle Load | 3500/6495kg | ||
| Front Wheel Track | 1710,1818mm | ||
| Rear Wheel Track | 1630,1800mm | ||
| Approaching/Departuring Angle | 23/12° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 8.25-16LT 16PR,8.25R16LT 16PR,8.25-20 12PR,8.25R20 12PR,9R22.5 12PR,8.25R20 14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISF3.8s5154 | Beijing Foton Cummins Engine Corporation | 115kW | 3760ml |
