| Basic Information | |||

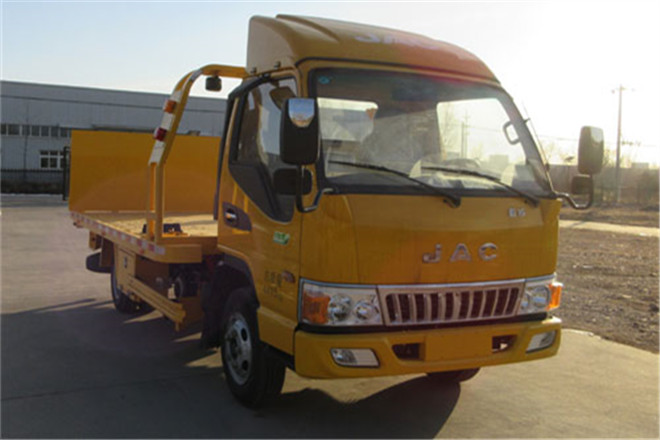

| Usage | Road-block Removal Truck | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 5995mm | ||
| Width | 2400,2300mm | ||
| Height | 2560mm | ||
| Curb Weight | 4140kg | ||
| Gross Weight | 4495kg | ||
| Seats | 2 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | HFC1041P93K4C2ZV | ||
| Front/Rear Overhang | 1085/1602mm | ||
| Number of Leaf Springs | 11/9+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3308,2800,3360mm | ||
| Axle Load | 1620/2875kg | ||
| Front Wheel Track | 1440mm | ||
| Rear Wheel Track | 1395mm | ||
| Approaching/Departuring Angle | 20/10° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 6.50-16 10PR,6.50R16 10PR,7.00R16 8PR,7.00-16 8PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| HFC4DF1-2D2 | Hefei Jianghuai Chaoyang Diesel Co., Ltd. | 86kW | 2544ml |
| D25TCIE1 | Kunming Yunnei Power Co., Ltd. | 105kW | 2499ml |
| HFC4DA1-2D | Anhui Jianghuai Automobile Group Co., Ltd. | 88kW | 2771ml |
| WP3Q130E50 | Weichai Power Yangzhou Diesel Engine Co., Ltd. | 96kW | 2970ml |
