| Basic Information | |||

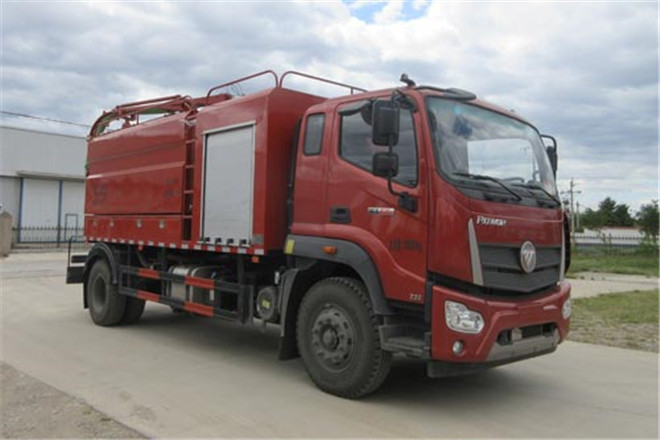

| Usage | Suction-type Sewer Scavenger | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 8715mm | ||
| Width | 2545mm | ||
| Height | 3660mm | ||
| Curb Weight | 12090kg | ||
| Gross Weight | 18000kg | ||
| Seats | 2,3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | BJ1184VKPFN-02, sceond-class, Foton Motor Co., Ltd. | ||
| Front/Rear Overhang | 1290/1710mm | ||
| Number of Leaf Springs | 10/12+9,10/10+9,4/10+3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 5100mm | ||
| Axle Load | 6500/11500kg | ||
| Front Wheel Track | 1900,1960mm | ||
| Rear Wheel Track | 1810,1860mm | ||
| Approaching/Departuring Angle | 19/16° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 10.00R20 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP4.6NQ220E61 | Weichai Holding Group Co., Ltd. | 162kW | 4580ml |
