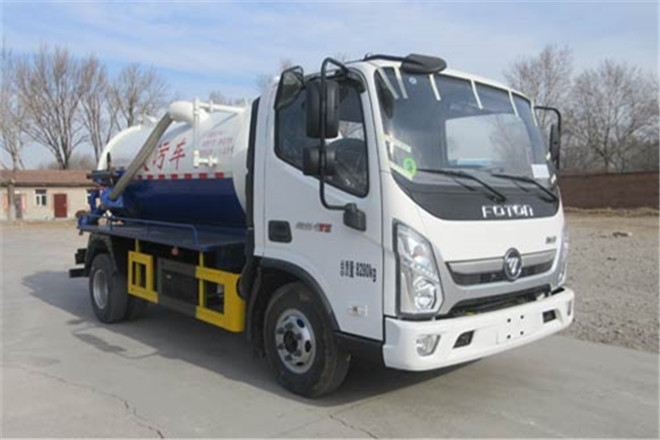

Beizhong BZD5080GXW-A3 Suction-type Sewer Scavenger

Basic Information
Usage	Suction-type Sewer Scavenger
Fuel Type	Diesel
Emission Standard	GB17691-2005 national Ⅴ emission standards, GB3847-2005
Length	6135,6175mm
Width	2095,2045,2270mm
Height	2635mm
Curb Weight	3980kg
Gross Weight	8280kg
Seats	3,2
Max Speed	110km/h
Chassis
Chassis Model	BJ1089VEJEA-F3
Front/Rear Overhang	1120/1655,1120/1695mm
Number of Leaf Springs	3+1/6+7,9/11+7,3/7+6,3/8+6,3/4+2,3/5+2
Number of Axles	2
Wheelbase	3360mm
Axle Load	3000/5280kg
Front Wheel Track	1530,1710,1730,1665,1590mm
Rear Wheel Track	1485,1590,1630,1615,1800mm
Approaching/Departuring Angle	22/13,22/15°
Tire
Number of Tires	6
Tire	7.50R16
Engine
Model	Brand	Power	Displacement
ISF3.8s5141	Beijing Foton Cummins Engine Co., Ltd.	105kW	3760ml
ISF2.8s5129T	Beijing Foton Cummins Engine Co., Ltd.	96kW	2780ml
ISF2.8s5R117	Beijing Foton Cummins Engine Co., Ltd.	87kW	2780ml
4J28TC3	Foton Motor Co., Ltd.	81kW	2771ml
ISF3.8s5154	Beijing Foton Cummins Engine Co., Ltd.	115kW	3760ml
4J28TC5	Foton Motor Co., Ltd.	81kW	2771ml
ISF2.8s5F130	Beijing Foton Cummins Engine Co., Ltd.	96kW	2780ml
CY4BK151	Dongfeng Chaoyang Diesel Co., Ltd.	105kW	3856ml
WP3.7Q130E50	Weichai Power Yangzhou Diesel Co., Ltd.	96kW	3660ml
4B2-115C50	Anhui Quanchai Power Co., Ltd.	85kW	2545ml
