| Basic Information | |||

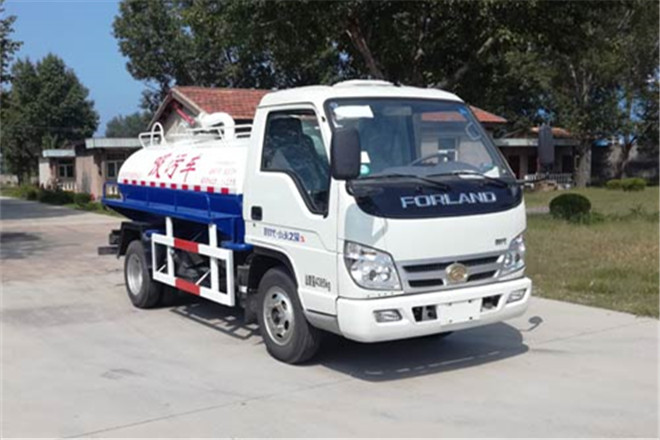

| Usage | Suction-type Sewer Scavenger | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 6155mm | ||
| Width | 2045mm | ||
| Height | 2540mm | ||
| Curb Weight | 3540kg | ||
| Gross Weight | 7360kg | ||
| Seats | 3 | ||
| Max Speed | 95km/h | ||
| Chassis | |||
| Chassis Model | BJ1073VEJEA-B2 | ||
| Front/Rear Overhang | 1150/1645mm | ||
| Number of Leaf Springs | 4/6+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3360mm | ||
| Axle Load | 2640/4720kg | ||
| Front Wheel Track | 1550,1730mm | ||
| Rear Wheel Track | 1590mm | ||
| Approaching/Departuring Angle | 21/12° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.00R16LT 14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISF2.8s5129T | Beijing Foton Cummins Engine Co., Ltd. | 96kW | 2780ml |
| 4B2-115C50 | Anhui Quanchai Power Co., Ltd. | 85kW | 2545ml |
| CA4DC3-12E5 | Deutz FAW (Dalian) Diesel Co., Ltd. | 91kW | 3000ml |
| 4J28TC3 | Foton Motor Co., Ltd. | 81kW | 2771ml |
| YN33CRE1 | Kunming Yunnei Power Co., Ltd. | 85kW | 3298ml |
| CY4BK551 | Dongfeng Chaoyang Diesel Co., Ltd. | 75kW | 3707ml |
| D25TCIE1 | Kunming Yunnei Power Co., Ltd. | 105kW | 2499ml |
| YN27CRE1 | Kunming Yunnei Power Co., Ltd. | 70kW | 2672ml |
