| Basic Information | |||

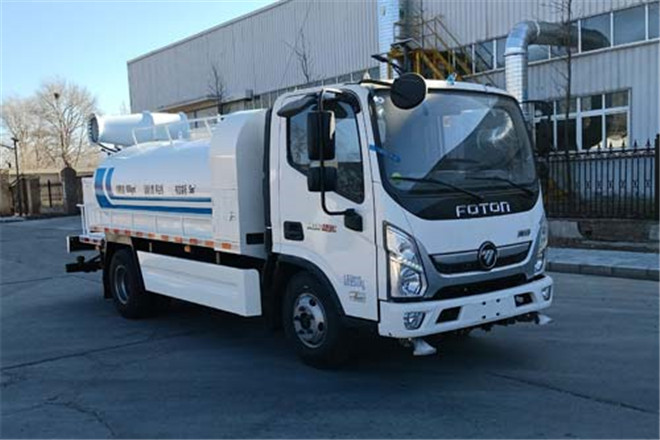

| Usage | Multi-purpose Dust Suppression Truck | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2018 national Ⅵ emission standards | ||
| Length | 6510mm | ||
| Width | 2095mm | ||
| Height | 2530mm | ||
| Curb Weight | 4205kg | ||
| Gross Weight | 9100kg | ||
| Seats | 3 | ||
| Max Speed | 110km/h | ||
| Chassis | |||
| Chassis Model | BJ1098VEJEA-AB2 | ||
| Front/Rear Overhang | 1110/2040mm | ||
| Number of Leaf Springs | 3/8+6,9/8+6,3/7+6 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3360mm | ||
| Axle Load | 3300/5800kg | ||
| Front Wheel Track | 1730,1750,1590mm | ||
| Rear Wheel Track | 1615,1800,1590mm | ||
| Approaching/Departuring Angle | 15/° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.50R16LT 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| D30TCIF1 | Kunming Yunnei Power Co., Ltd. | 125kW | 2977ml |
| F3.8NS6B156 | Beijing Foton Cummins Engine Co., Ltd. | 115kW | 3800ml |
| Q28-130E60 | Anhui Quanchai Power Co., Ltd. | 96kW | 2800ml |
| F2.8NS6B150 | Beijing Foton Cummins Engine Co., Ltd. | 110kW | 2780ml |
| F2.8NS6B156 | Beijing Foton Cummins Engine Co., Ltd. | 115kW | 2780ml |
