| Basic Information | |||

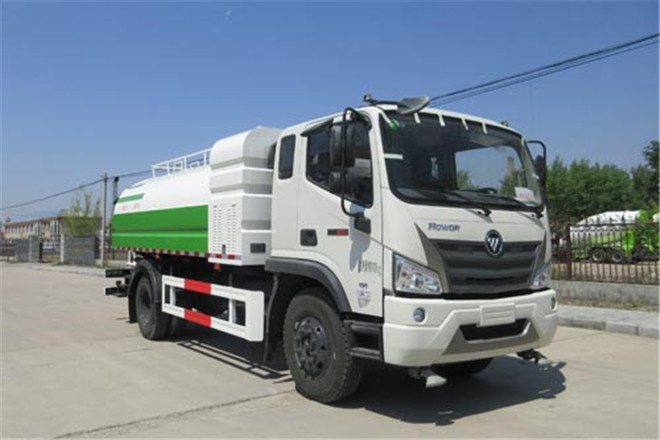

| Usage | Street Sprinkler | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 7980mm | ||
| Width | 2400mm | ||
| Height | 3000mm | ||
| Curb Weight | 6805kg | ||
| Gross Weight | 16000kg | ||
| Seats | 3 | ||
| Max Speed | 80km/h | ||
| Chassis | |||
| Chassis Model | BJ5164JQZHPDD-01 | ||
| Front/Rear Overhang | 1235/2545mm | ||
| Number of Leaf Springs | 10/12+9 | ||
| Number of Axles | 2 | ||
| Wheelbase | 4200,4500,3700,3900mm | ||
| Axle Load | 5400/10600kg | ||
| Front Wheel Track | 1728,1740,1760,1780mm | ||
| Rear Wheel Track | 1760,1780,1728,1740mm | ||
| Approaching/Departuring Angle | 17/12° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 10.00R20 18PR,9.00R20 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP3NQ160E61 | Weichai Holding Group Co., Ltd. | 118kW | 2970ml |
| WP4.1NQ190E61 | Weichai Holding Group Co., Ltd. | 140kW | 4088ml |
