| Basic Information | |||

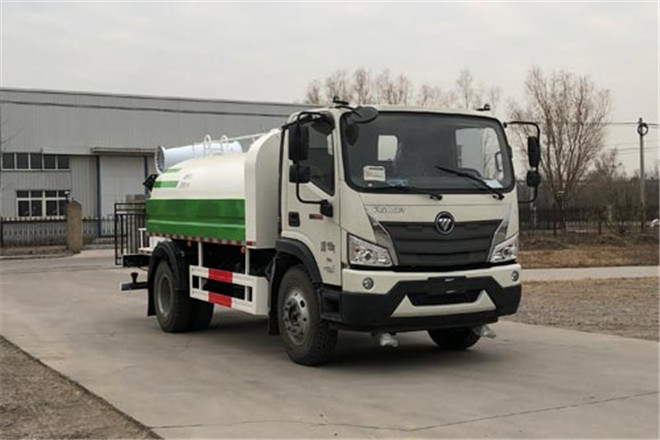

| Usage | Street Sprinkler | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 7440mm | ||
| Width | 2465mm | ||
| Height | 2755mm | ||
| Curb Weight | 6050kg | ||
| Gross Weight | 11995kg | ||
| Seats | 3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | BJ1124VKJFA-01, second-class, Beijing Foton Motor Co., Ltd. | ||
| Front/Rear Overhang | 1230/2410mm | ||
| Number of Leaf Springs | 8/10+6,4/10+6,10/12+9 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3800mm | ||
| Axle Load | 4165/7830kg | ||
| Front Wheel Track | 1775,1795,1805mm | ||
| Rear Wheel Track | 1800,1815mm | ||
| Approaching/Departuring Angle | 11/15° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 8.25R20 16PR,9.00R20 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP4.1NQ190E61 | Weichai Holding Group Co., Ltd. | 140kW | 4088ml |
