| Basic Information | |||

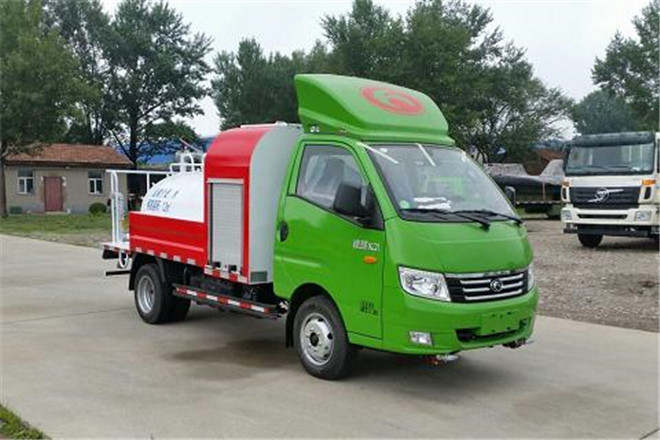

| Usage | Street Sprinkler | ||
| Fuel Type | Gasoline | ||
| Emission Standard | GB18352.5-2013 national Ⅴ emission standards | ||
| Length | 5430mm | ||
| Width | 1790mm | ||
| Height | 2490,2100mm | ||
| Curb Weight | 2165kg | ||
| Gross Weight | 3495kg | ||
| Seats | 2 | ||
| Max Speed | 85km/h | ||
| Chassis | |||
| Chassis Model | BJ1036V4JV5-W1 | ||
| Front/Rear Overhang | 1185/1245mm | ||
| Number of Leaf Springs | 3/5,4/7,3/5+3,3/5+1 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3000mm | ||
| Axle Load | 1365/2130kg | ||
| Front Wheel Track | 1385,1505mm | ||
| Rear Wheel Track | 1280,1380mm | ||
| Approaching/Departuring Angle | 17/18° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 185R15 6PR, 6.00-15 10PR,6.50R15 6PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| 4Q20M | Beijing Foton Motor Co., Ltd. | 95kW | 1998ml |
