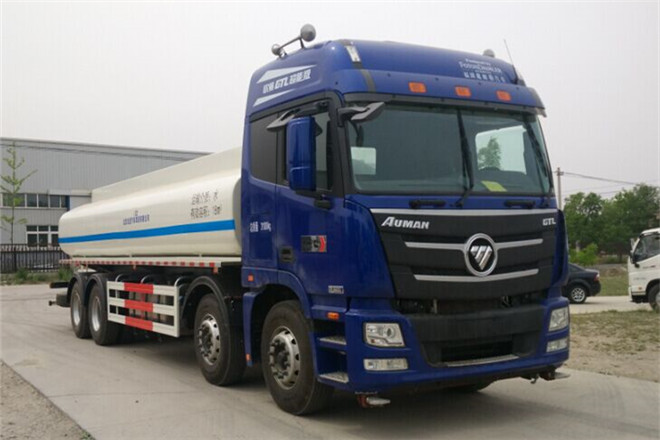

Beizhong BZD5310GSS-A5 Sprinkler

Basic Information
Usage	Street Sprinkler
Fuel Type	Diesel
Emission Standard	GB17691-2005 national Ⅴ emission standards, GB3847-2005
Length	11995mm
Width	2500mm
Height	3580,3300mm
Curb Weight	12870kg
Gross Weight	31000kg
Seats	2,3
Max Speed	100km/h
Chassis
Chassis Model	BJ1319VNPKJ-AA
Front/Rear Overhang	1450/2695mm
Number of Leaf Springs	3/3/5,13/14/12,3/3/12,10/10/10,10/10/12,3/3/4,2/2/4
Number of Axles	4
Wheelbase	1800+4700+1350,1800+4725+1300,2000+4500+1350mm
Axle Load	6500/6500/18000(two axles)kg
Front Wheel Track	2010/2010,2020/2020,2080/2080mm
Rear Wheel Track	1860/1860,1880/1880mm
Approaching/Departuring Angle	13/10°
Tire
Number of Tires	12
Tire	12.00R20 18PR,12.00R20 16PR,12.00R20 14PR,12.00-20 18PR,12.00-20 16PR,12.00-20 14PR,11.00R20 18PR ,11.00R20 16PR,11.00-20 18PR,11.00-20 16PR,315/80R22.5 18PR,315/80R22.5 16PR,12R22.5 18PR,12R22.5 16PR
Engine
Model	Brand	Power	Displacement
ISGe5-430	Beijing Foton Cummins Engine Corporation	316kW	11800ml
ISGe5-400	Beijing Foton Cummins Engine Corporation	294kW	11800ml
ISGe5-380	Beijing Foton Cummins Engine Corporation	279kW	11800ml
ISGe5-360	Beijing Foton Cummins Engine Corporation	265kW	11800ml
ISGe5-340	Beijing Foton Cummins Engine Corporation	250kW	10500ml
ISGe5-320	Beijing Foton Cummins Engine Corporation	235kW	10500ml
ISGe5-300	Beijing Foton Cummins Engine Corporation	220kW	10500ml
