| Basic Information | |||

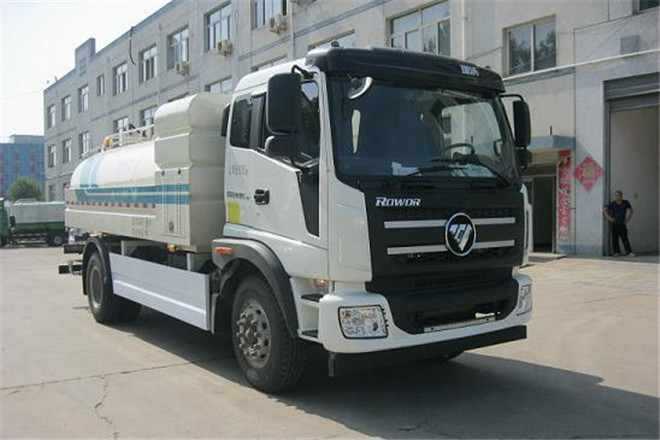

| Usage | Street Sprinkler | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 8060mm | ||
| Width | 2495mm | ||
| Height | 2900mm | ||
| Curb Weight | 6600kg | ||
| Gross Weight | 15795kg | ||
| Seats | 3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | BJ1166VJPEN-1 | ||
| Front/Rear Overhang | 1350/2210mm | ||
| Number of Leaf Springs | 8/10+8,8/10+3,4/10+3,10/12+9 | ||
| Number of Axles | 2 | ||
| Wheelbase | 5700,5400,5250,4800,4500mm | ||
| Axle Load | 5510/10285kg | ||
| Front Wheel Track | 1907,1960mm | ||
| Rear Wheel Track | 1810,1861mm | ||
| Approaching/Departuring Angle | 16/14° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 9.00R20 16PR,10R22.5 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISF3.8s5168 | Beijing Foton Cummins Engine Corporation | 125，132，125，136，162kW | 3760ml |
| YC6J180-52 | Guangxi Yuchai Machinery Group Co., Ltd. | 6494ml | |
| YC4S170-50 | Guangxi Yuchai Machinery Group Co., Ltd. | 3767ml | |
| ISF4.5S5185 | Beijing Foton Cummins Engine Corporation | 4460ml | |
| YC6JA220-50 | Guangxi Yuchai Machinery Group Co., Ltd. | 6870ml | |
