| Basic Information | |||

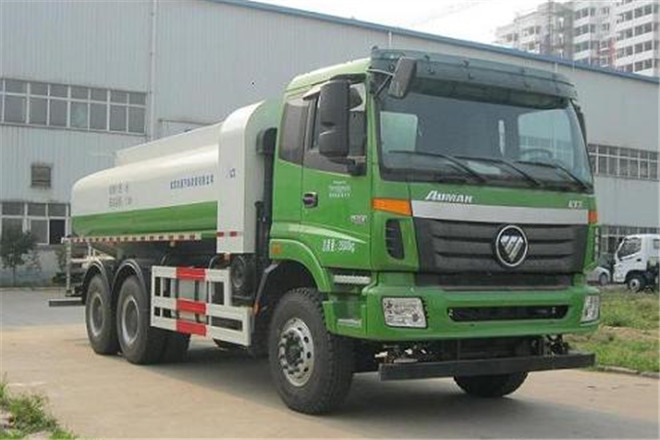

| Usage | Street Sprinkler | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 9870,10720mm | ||
| Width | 2495mm | ||
| Height | 3035mm | ||
| Curb Weight | 11870kg | ||
| Gross Weight | 25000kg | ||
| Seats | 2,3 | ||
| Max Speed | 80km/h | ||
| Chassis | |||
| Chassis Model | BJ3253DLPKE-XG | ||
| Front/Rear Overhang | 1532/2888mm | ||
| Number of Leaf Springs | 9/12,10/12,11/14 | ||
| Number of Axles | 3 | ||
| Wheelbase | 4100+1350mm | ||
| Axle Load | 7000/18000(two axles)kg | ||
| Front Wheel Track | 2005mm | ||
| Rear Wheel Track | 1880/1880mm | ||
| Approaching/Departuring Angle | 18/10° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 12.00R20 16PR,11.00R20 18PR,12.00-20 16PR,12.00-20 18PR,11.00-20 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP10.336E55 | Weichai Holding Group Co., Ltd. | 247，276kW | 9726，11596ml |
| WP12.375E55 | Weichai Holding Group Co., Ltd. | ||
