| Basic Information | |||

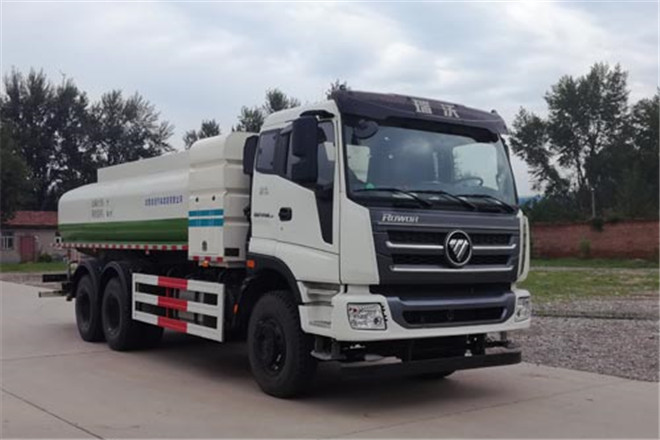

| Usage | Street Sprinkler | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 10230mm | ||
| Width | 2520mm | ||
| Height | 2930mm | ||
| Curb Weight | 10805kg | ||
| Gross Weight | 25000kg | ||
| Seats | 3 | ||
| Max Speed | 96km/h | ||
| Chassis | |||
| Chassis Model | BJ3255DLPHE-FA | ||
| Front/Rear Overhang | 1528/3052mm | ||
| Number of Leaf Springs | 10/11 | ||
| Number of Axles | 3 | ||
| Wheelbase | 4350+1300mm | ||
| Axle Load | 7000/18000(two axles)kg | ||
| Front Wheel Track | 1995mm | ||
| Rear Wheel Track | 1864mm | ||
| Approaching/Departuring Angle | 16/11° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 11.00R20,11.00-20 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP7.270E51 | Weichai Holding Group Co., Ltd. | 199kW | 7470ml |
